Map Light: Service and Repair

MAP/DOME LAMP ASSEMBLY REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

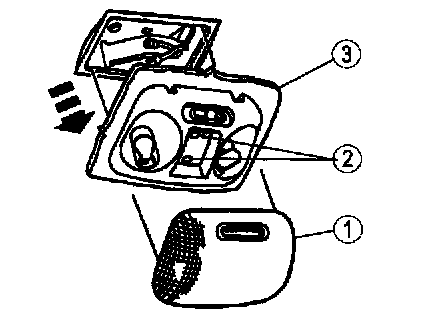

2. Remove in order shown in figure.
1. Lens
2. Bulb(s)
3. Map dome lamp assembly

3. Install in reverse order of removal.

Tightening torque
1.6 - 1.8 N.m {16.3 - 18.4 kgf.cm, 15 - 17 in.lbf}
