Drive Belt: Service and Repair

DRIVE BELT REMOVAL / INSTALLATION-2.3L

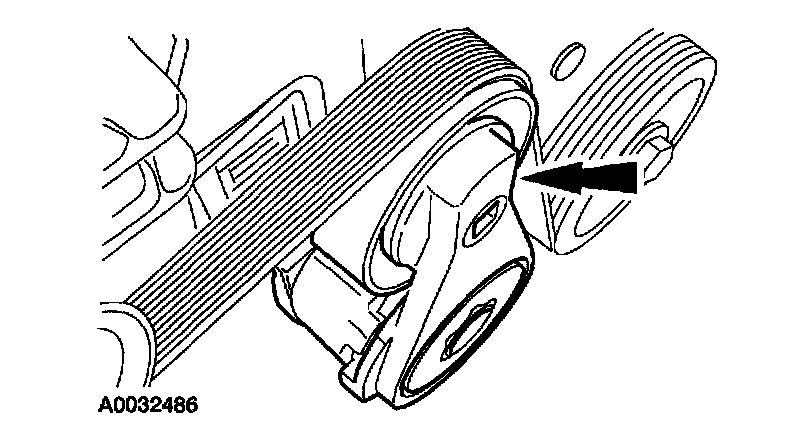

1. Rotate the belt tensioner counterclockwise and remove the drive belt.

Note:
^ See DRIVE BELT INSPECTION for correct drive belt routing.

2. To install, reverse the removal procedure.
