Power Steering Line/Hose: Service and Repair
POWER STEERING HOSE REMOVAL / INSTALLATIONRemoval
1. See POWER STEERING STRUCTURAL VIEW for hose routing and retention points.
Installation

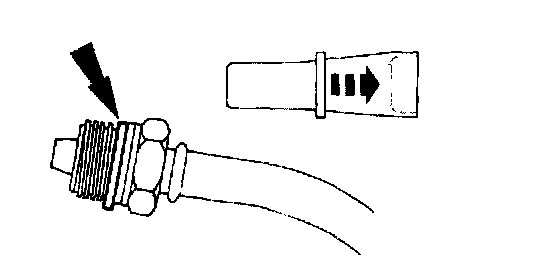

1. When connecting a fitting with a seal ring, the ring must be replaced.
(1) Use Seal Replacer Set 211-D027 (D9OP3517-A) or equivalent to install the return line connector seal and the pressure line connector seal.
Tightening torque 48 Nm {4.9 kgf-cm, 35 ft. lbs.}
2. Fill and leak check the system.
