Diagnostic Monitoring Test Results Access Procedure

Diagnostic Monitoring Test Results Access Procedure
1. Perform the necessary vehicle preparation and visual inspection. Hook-up the WDS or equivalent Tester to the vehicle.

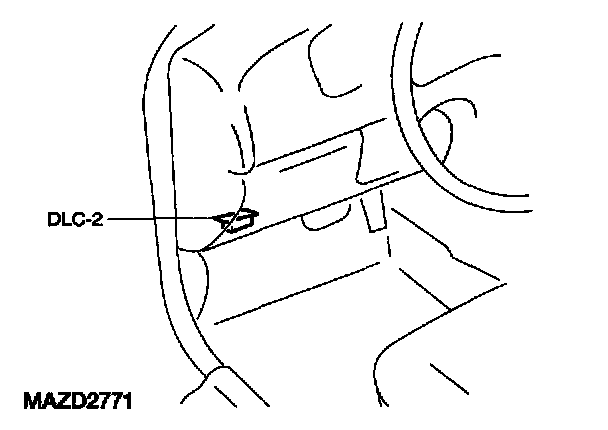

2. Connect the WDS or equivalent to the vehicle DLC-2 16-pin connector located on the left side of the center console.
3. Access the DIAGNOSTIC MONITORING TEST RESULTS and read the test results by WDS or equivalent.

Diagnostic Monitoring Test Results Table Part 1:

Diagnostic Monitoring Test Results Table Part 2:

Diagnostic Monitoring Test Results Table Part 3:

a= hexidecimal
b= These test IDs are signed values. Scan tool may display them as unsigned.

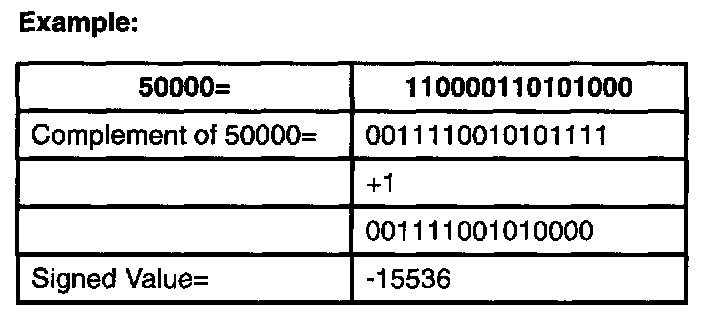

The conversion is done as follows: If the value is > 32767 then complement (change 0's to 1's and 1's to 0's), add 1 and a negative sign.
