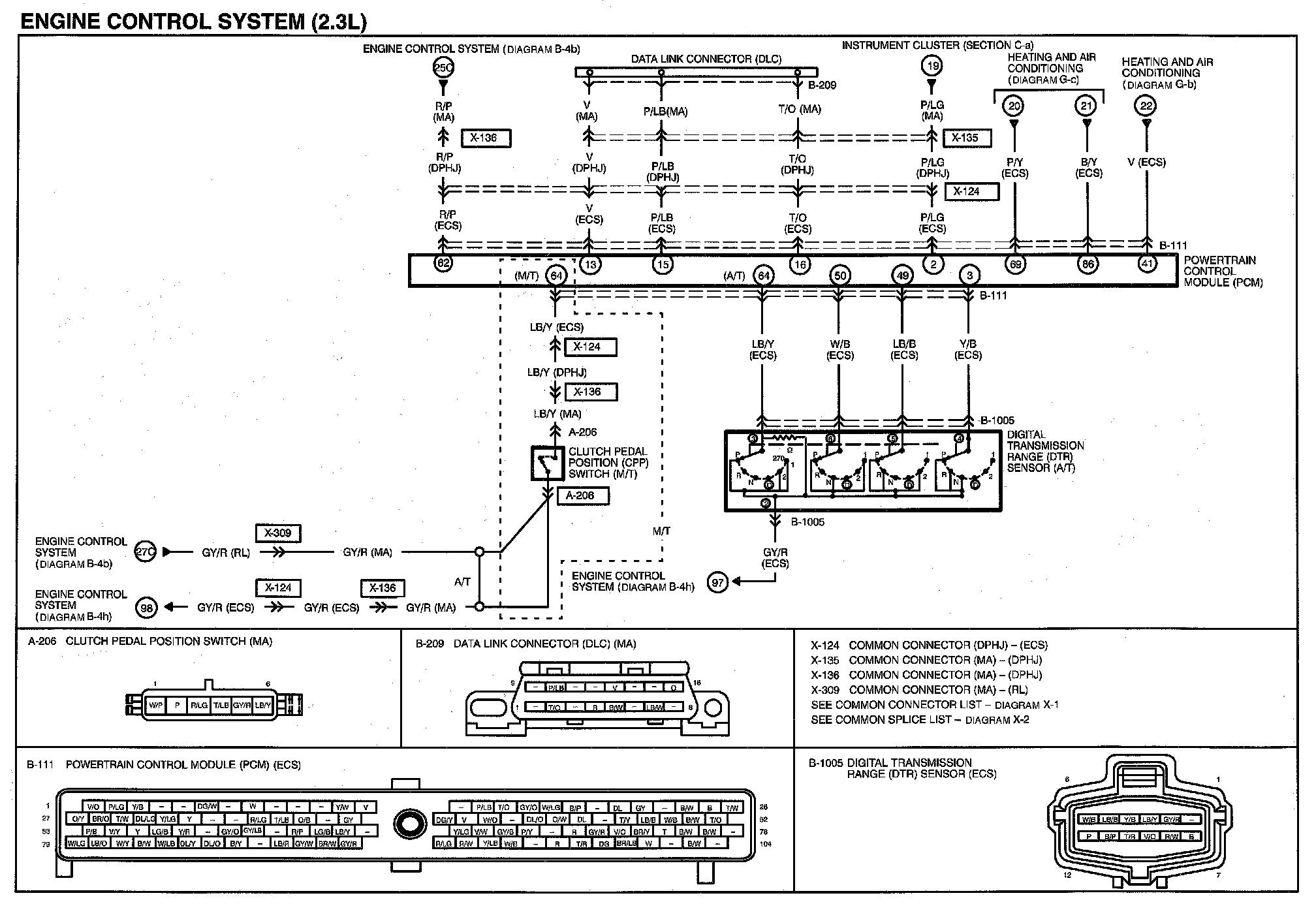

Diagram B-4d
Diagram B-4d:
Routing View B-4d:
Next Diagram Diagram B-4e
Previous Diagram Diagram B-4c
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name.
