Diagram B-4f

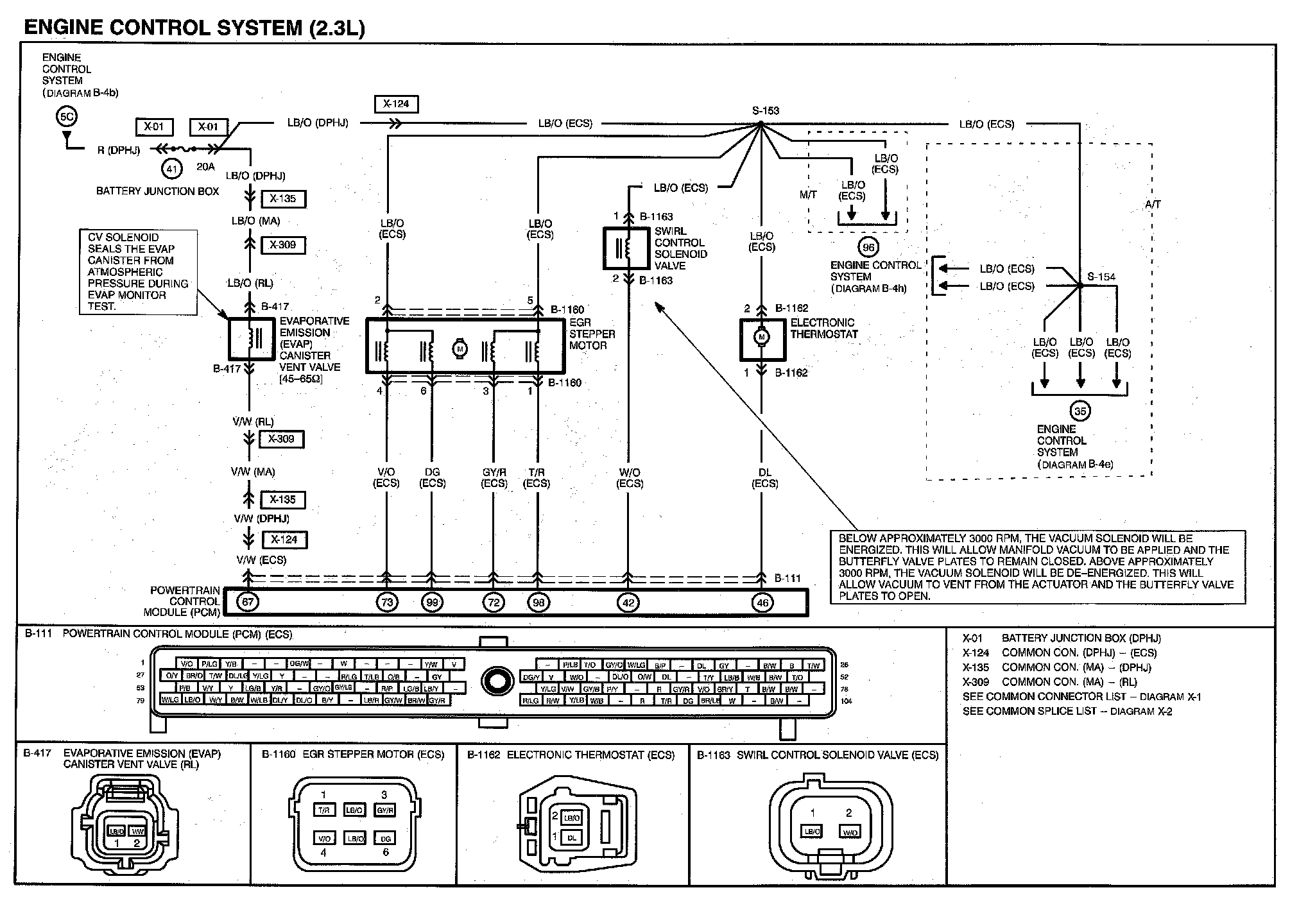

Diagram B-4f:

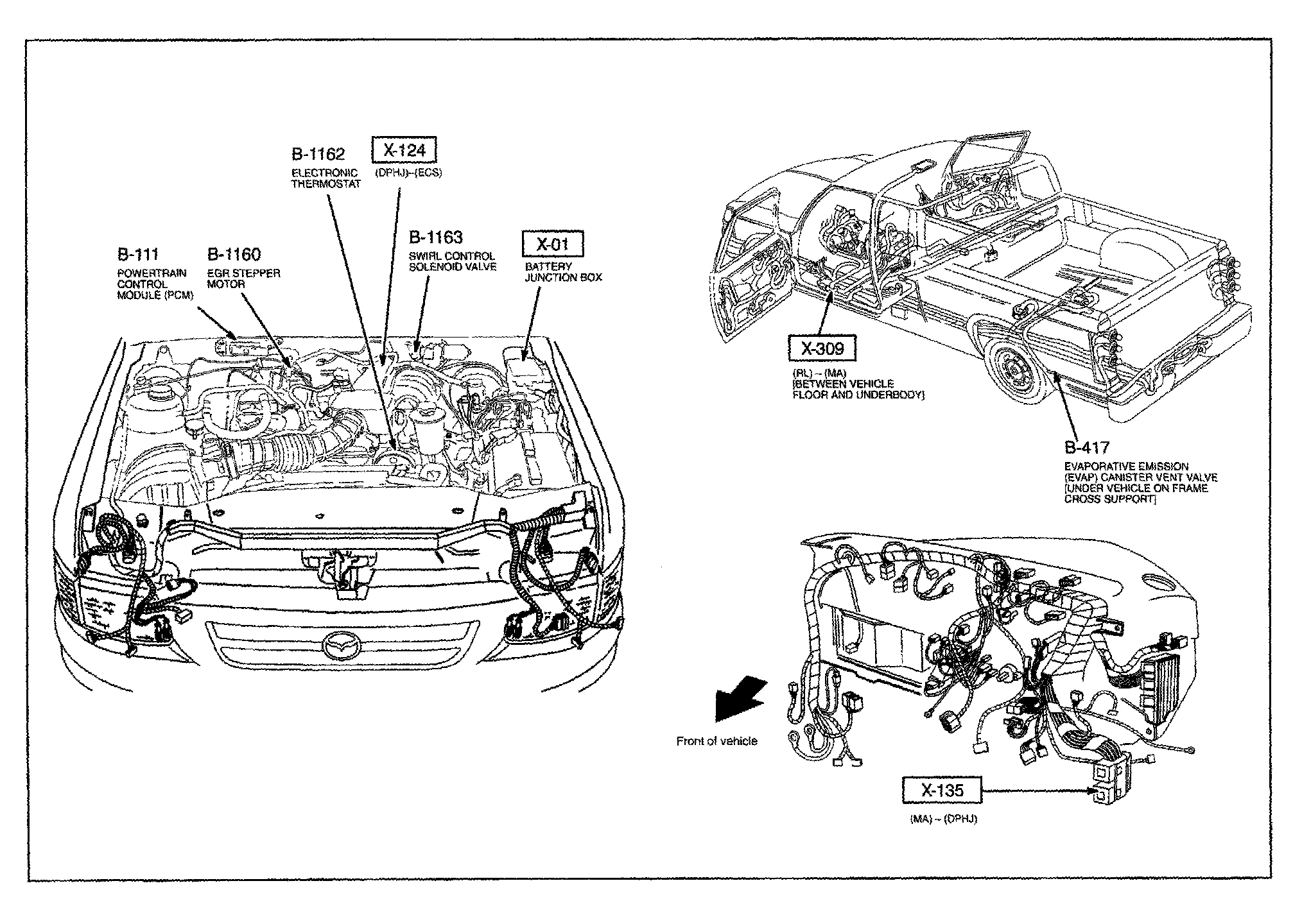

Routing View B-4f:

Next Diagram Diagram B-4g

Previous Diagram Diagram B-4e
