Diagram B-4h

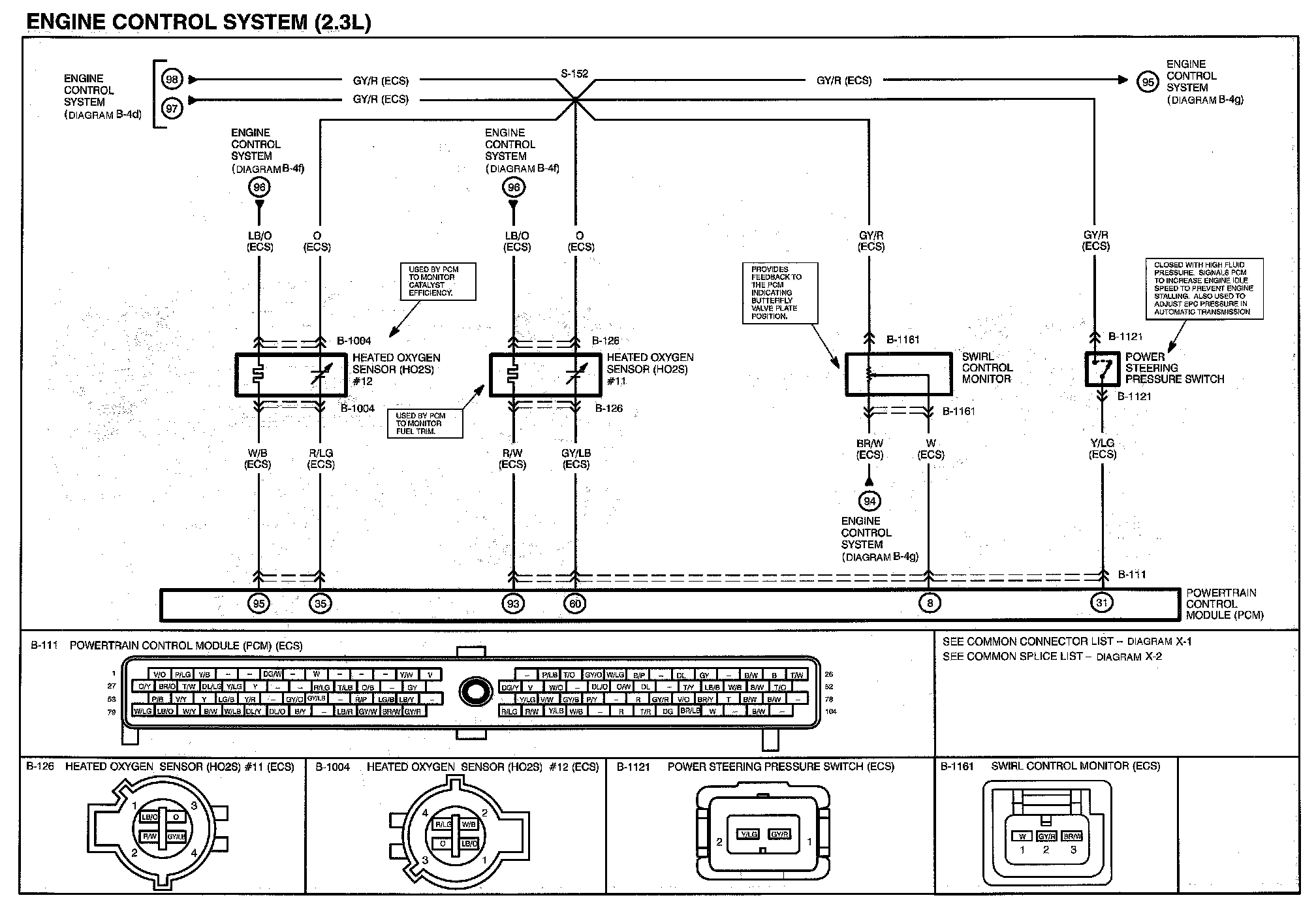

Diagram B-4h:

Routing View B-4h:

Next Diagram Diagram B-4i

Previous Diagram Diagram B-4g
