Diagram B-4i

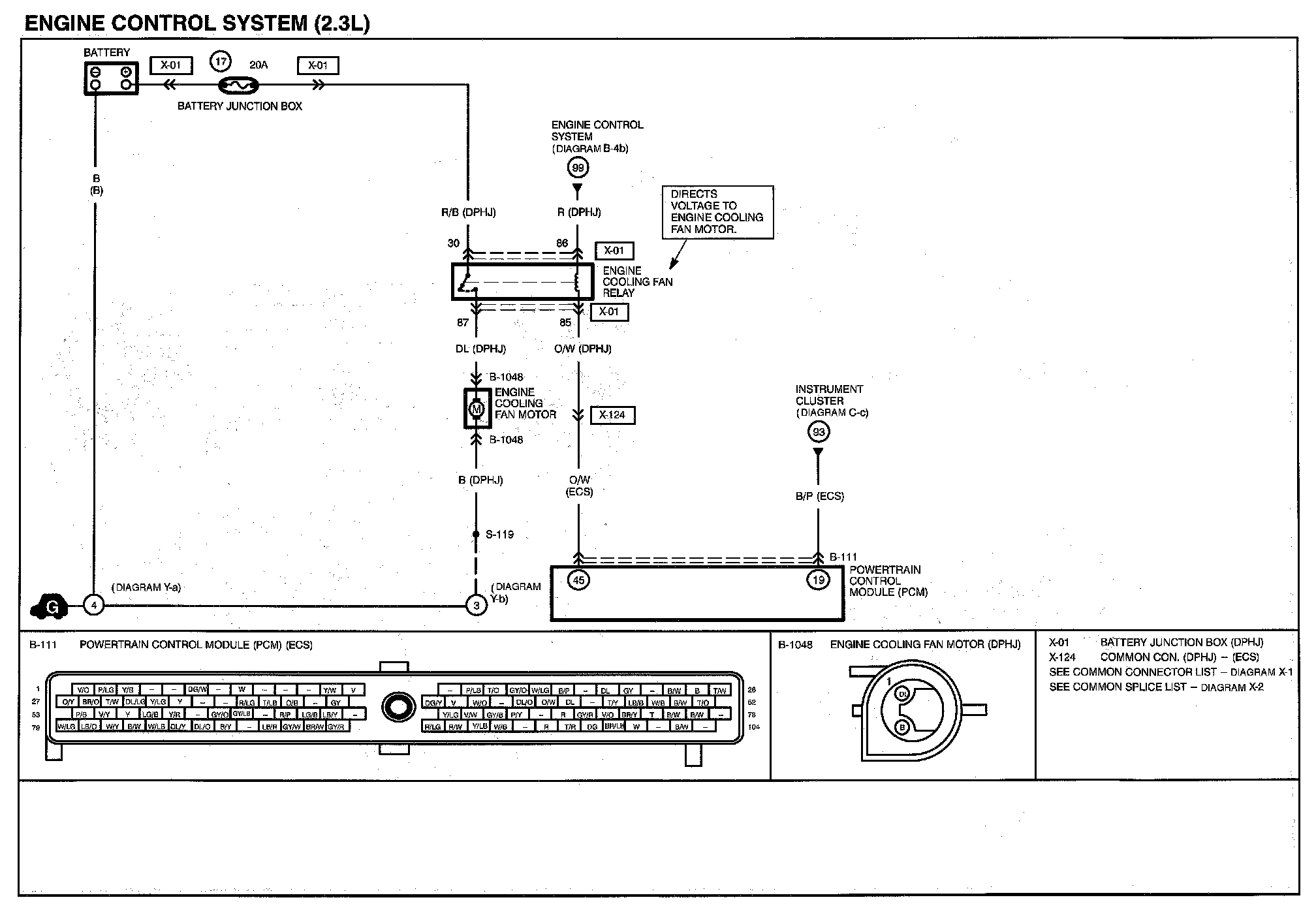

Diagram B-4i:

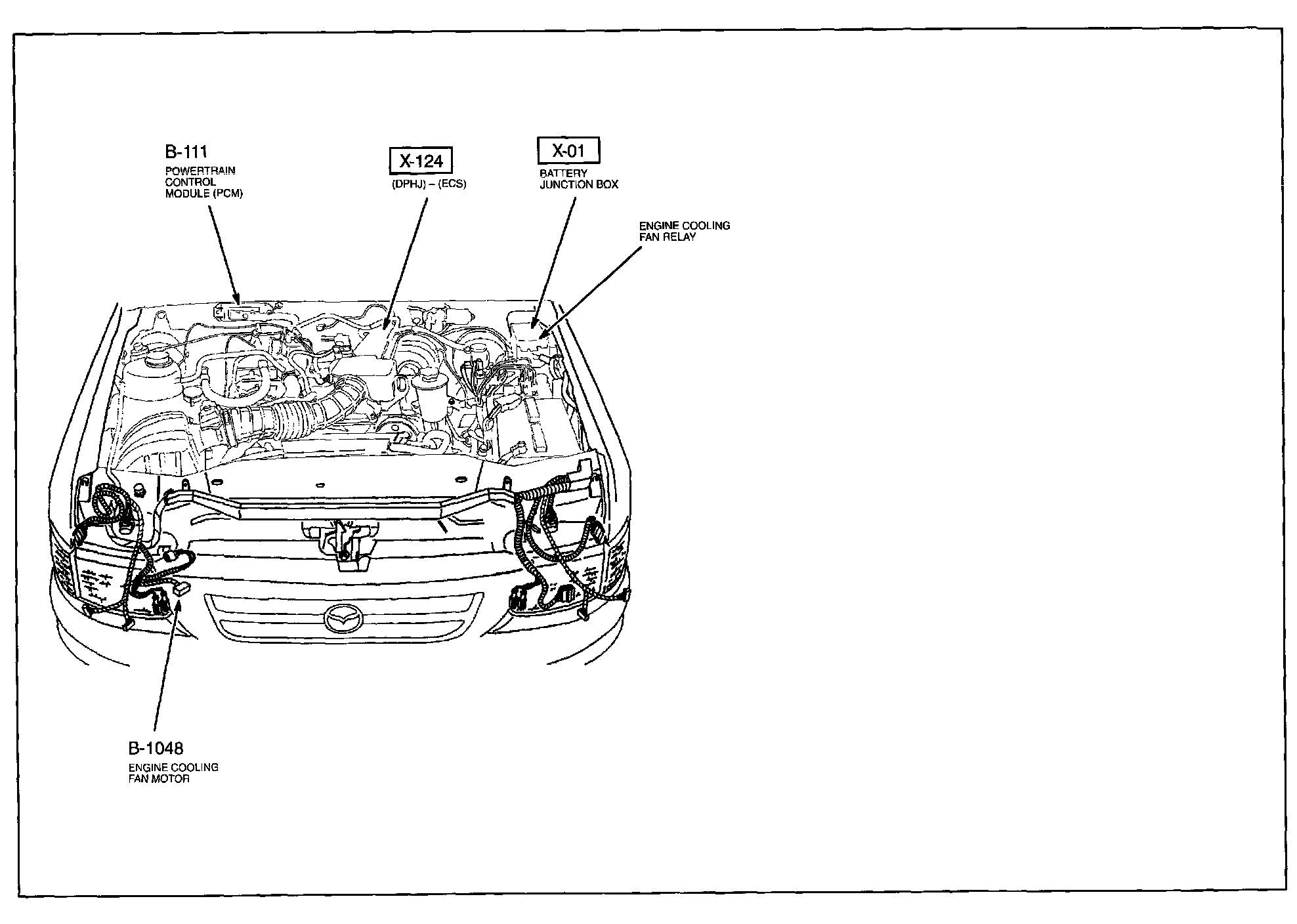

Routing View B-4i:

Previous Diagram Diagram B-4h

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name.
Diagrams By Diagram Name
