Flex Plate

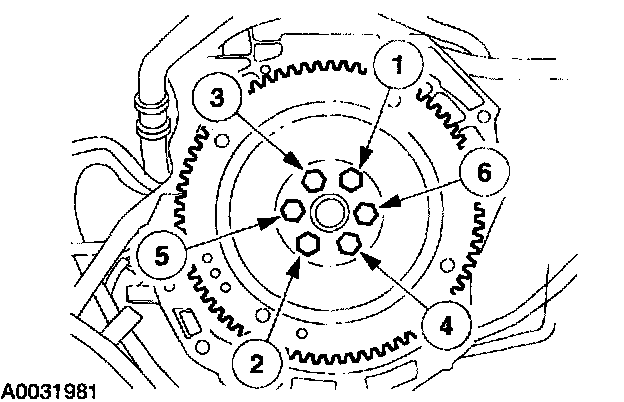

Tighten the bolts in the sequence shown in three stages.
Stage 1: Tighten to 50 Nm {5.1 kgf-cm, 37 lbs.}.
Stage 2: Tighten to 80 Nm {8.16 kgf-cm, 50 lbs.}.
Stage 3: Tighten to 112 Nm {11.42 kgf-cm, 83 lbs.}.
Tighten the bolts in the sequence shown in three stages.
Stage 1: Tighten to 50 Nm {5.1 kgf-cm, 37 lbs.}.
Stage 2: Tighten to 80 Nm {8.16 kgf-cm, 50 lbs.}.
Stage 3: Tighten to 112 Nm {11.42 kgf-cm, 83 lbs.}.
