Transmission Mode Switch: Service and Repair

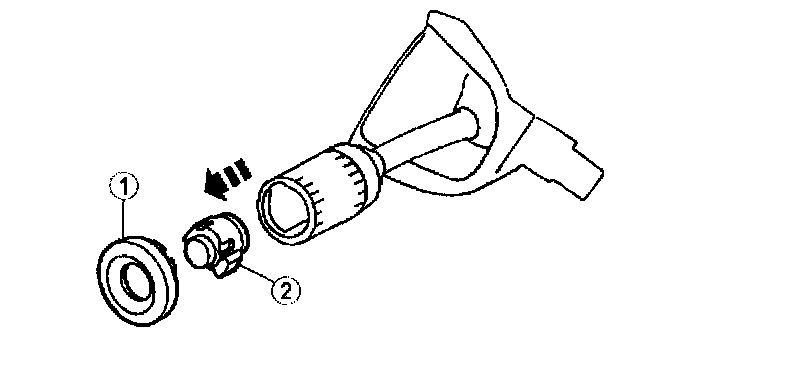

TRANSMISSION CONTROL SWITCH (TCS) REMOVAL / INSTALLATION
1.
Remove the transmission control switch
(TCS)
.
(1)
Remove the TCS cover.
(2)
Remove the TCS.
2.
Install in reverse order of removal.
