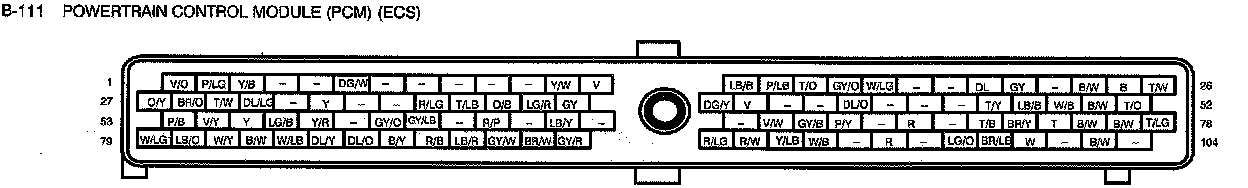

Engine Control Module

Terminal 1 - 22:

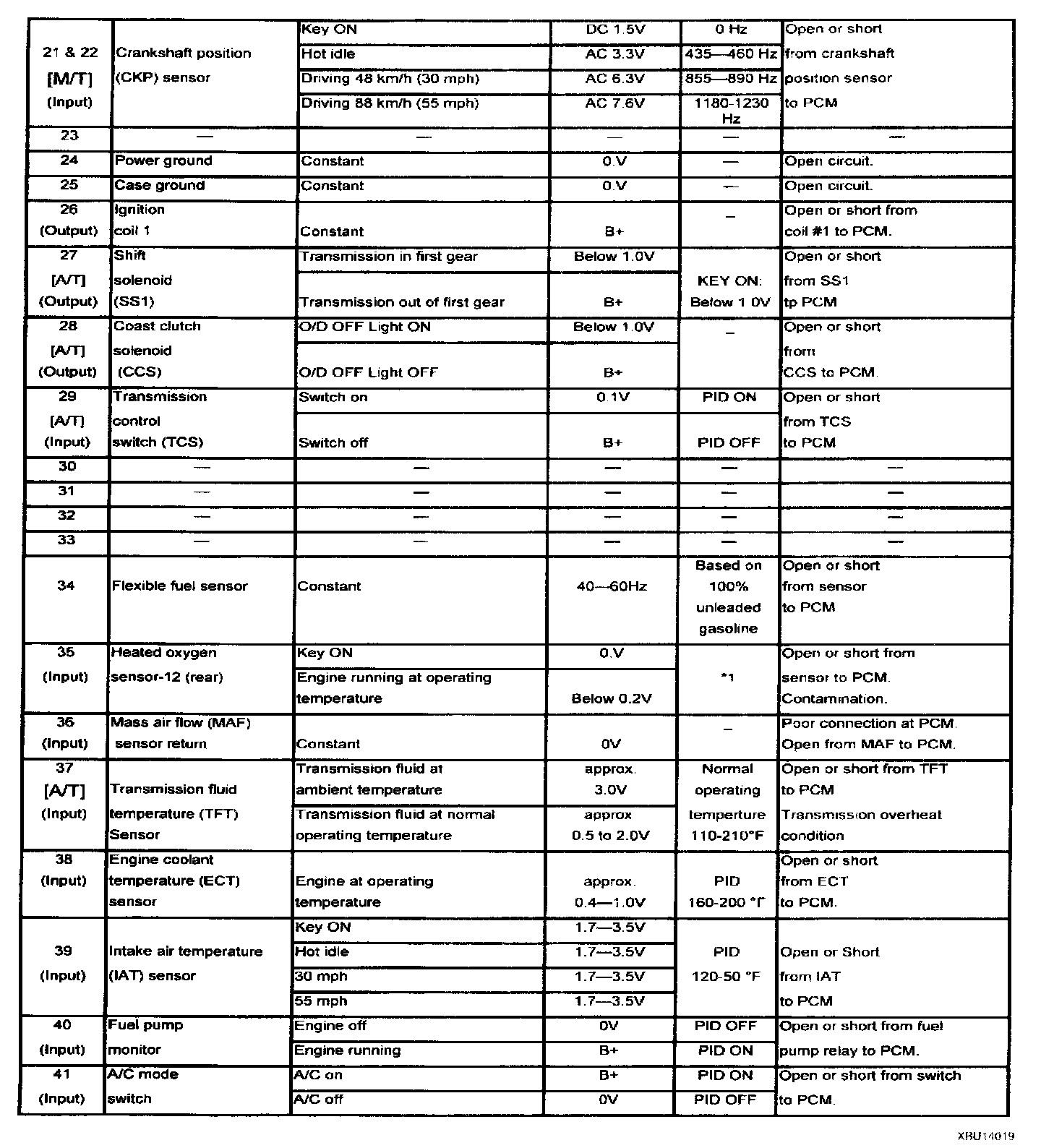

Terminal 21 - 41:

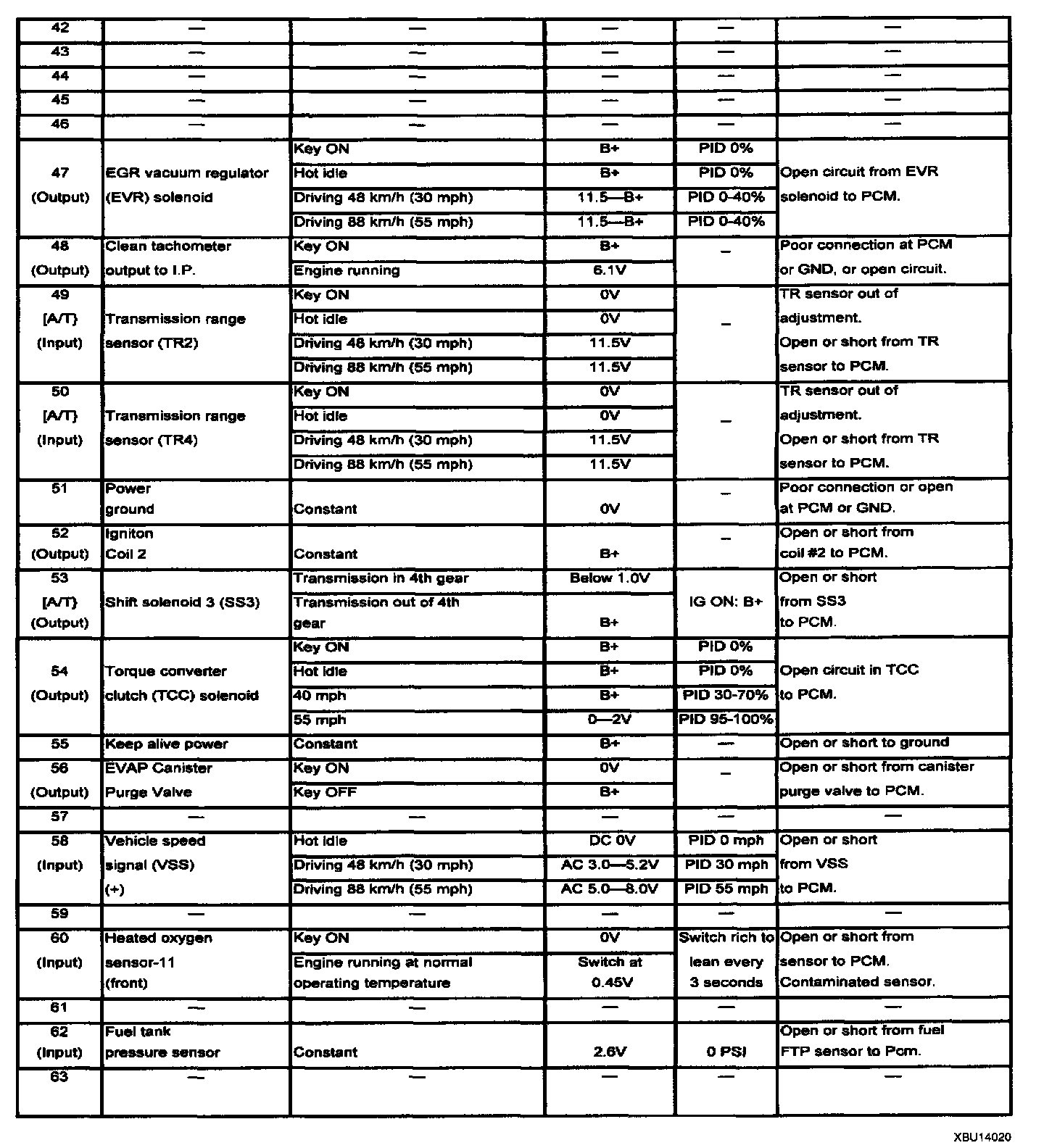

Terminal 42 - 83:

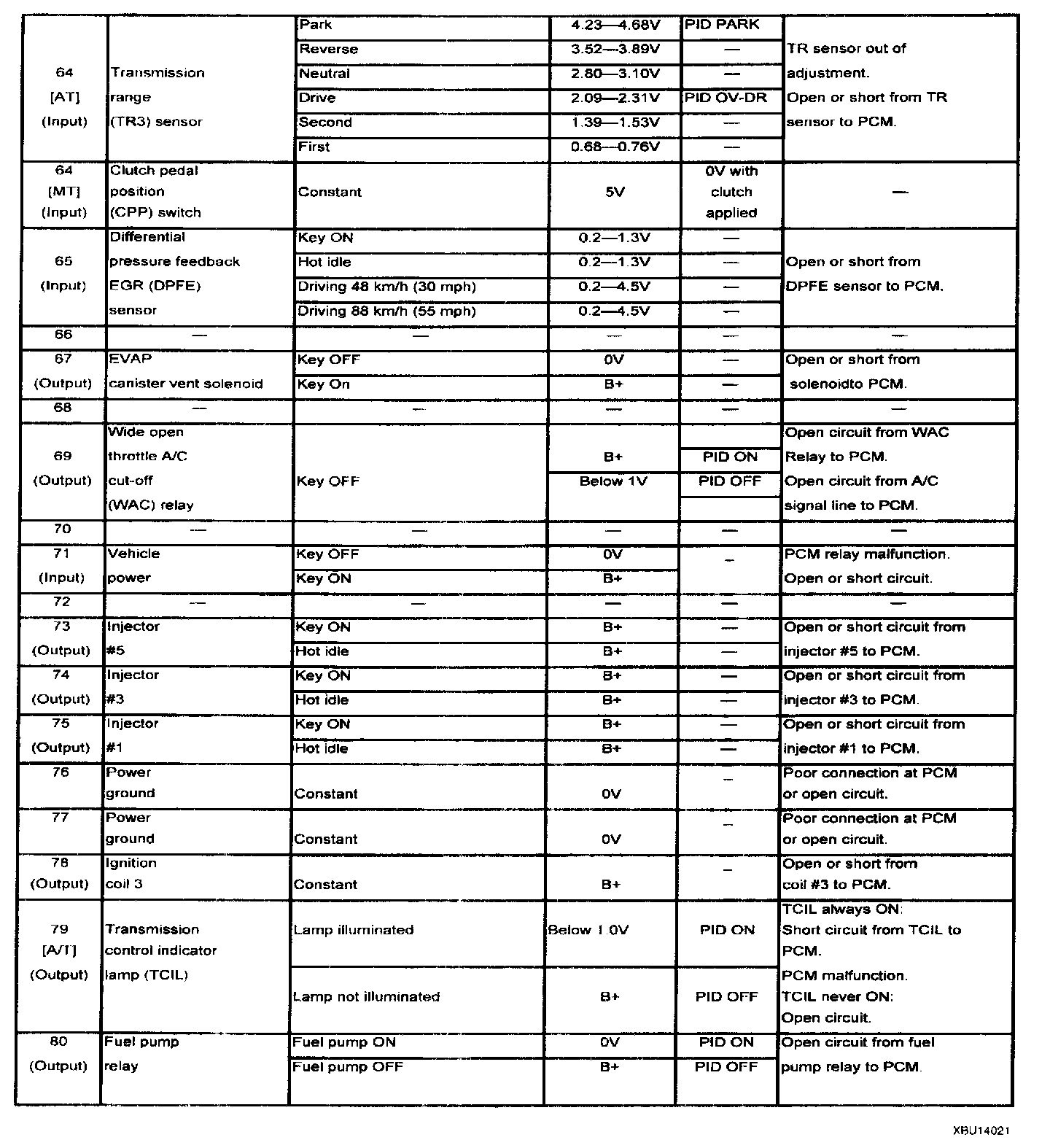

Terminal 64 - 80:

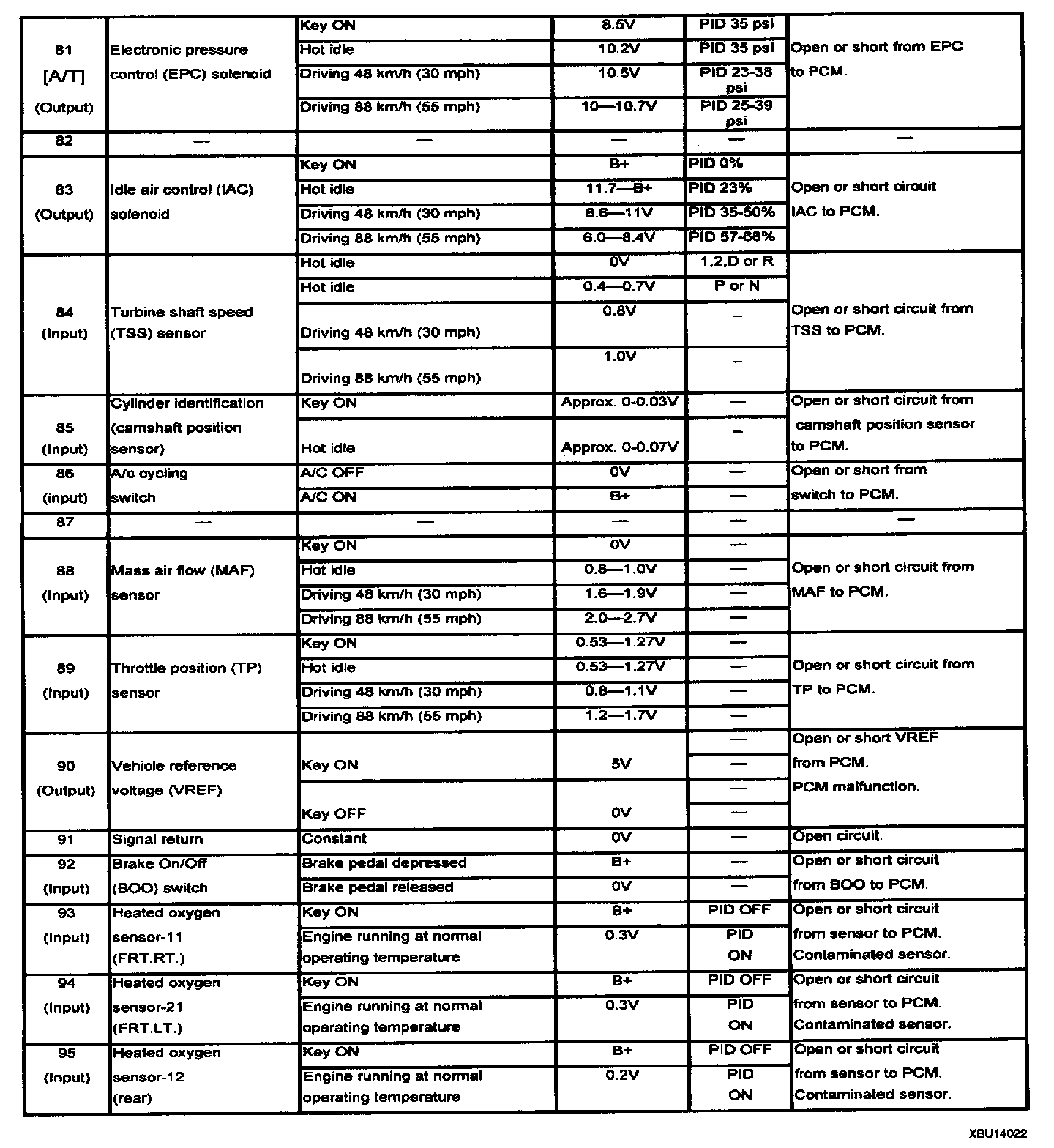

Terminal 81 - 95:

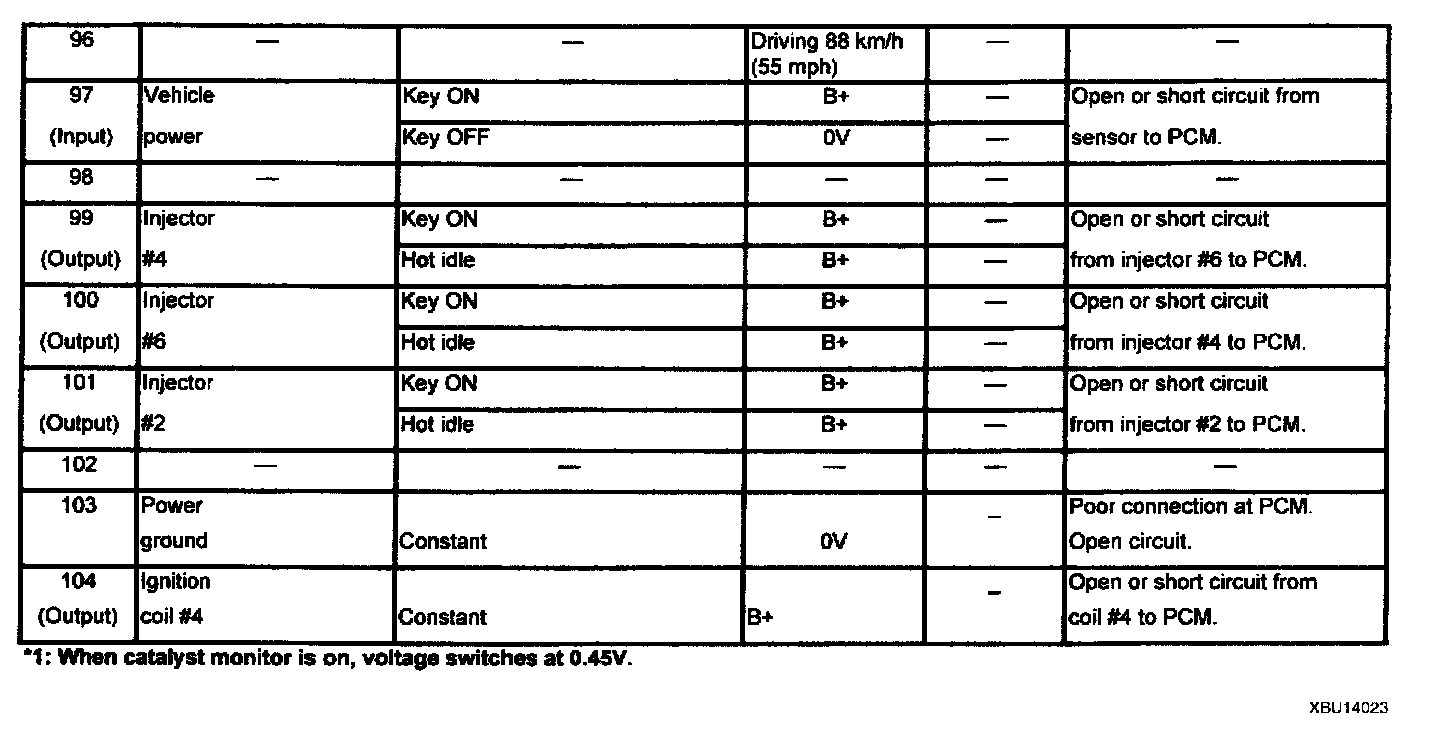

Terminal 96 - 104:

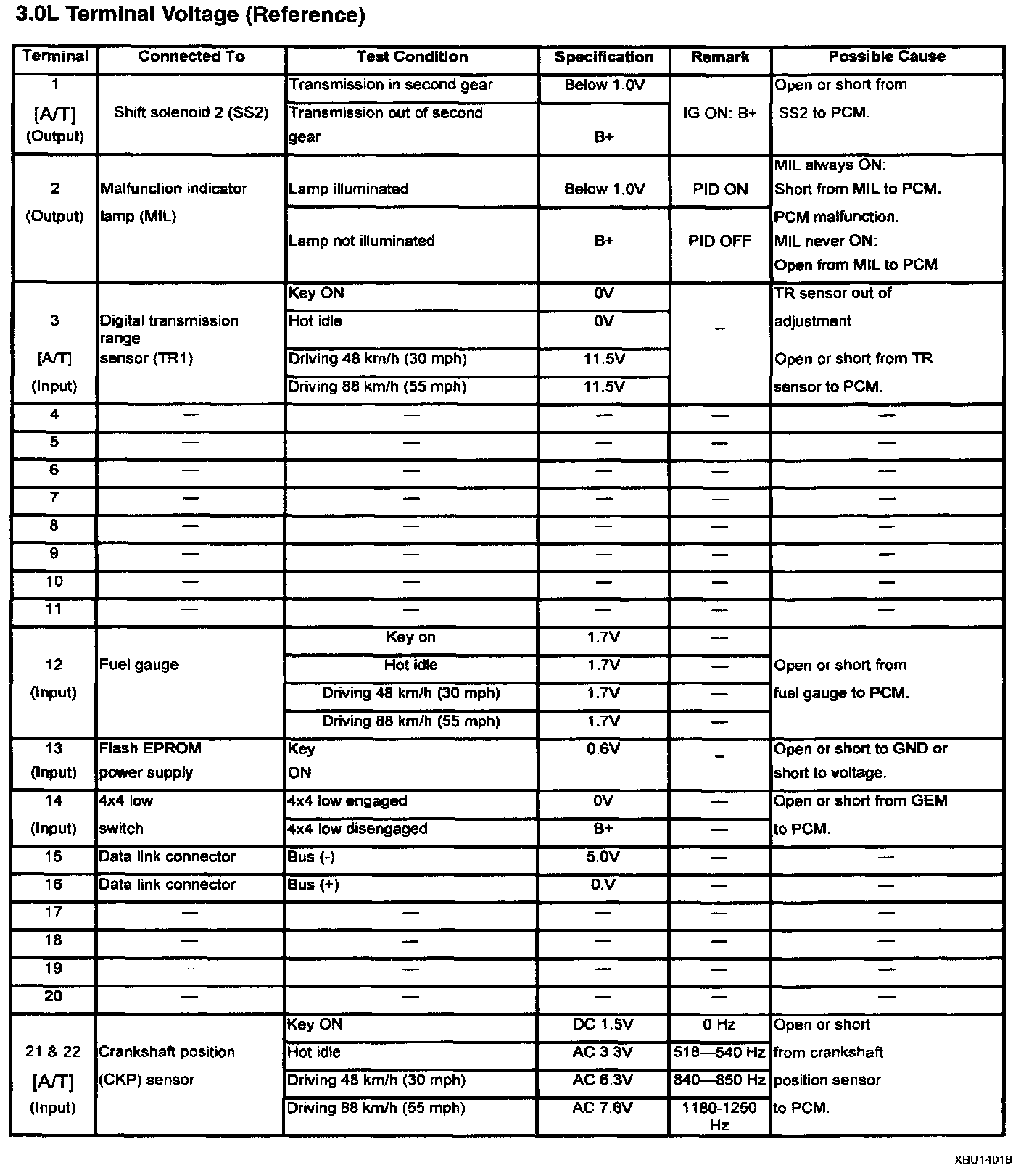

3.0L Terminal Voltage (Reference)

NOTE: All values shown may vary 20% depending on operating conditions and other factors. RPM values are axle and tire dependent.
