Automatic Transmission Cooling Components View
Automatic Transmission Cooling Components View

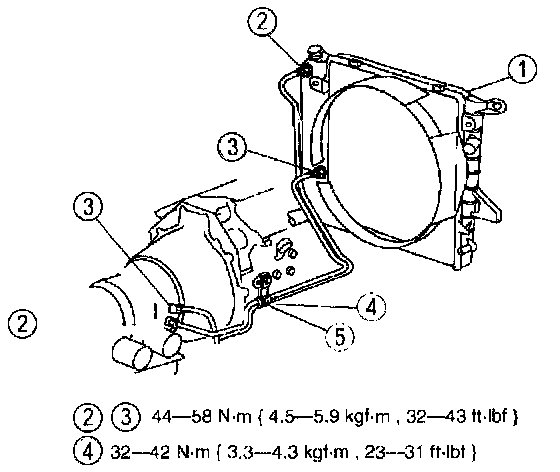

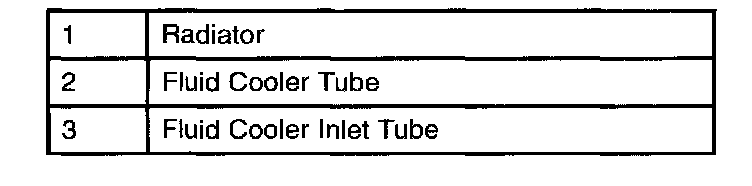

AUTOMATIC TRANSMISSION COOLING COMPONENTS VIEW
2.3 L and 3.0L
