Home >> Mazda >> 2003 >> B3000 2WD V6-3.0L OHV >> Repair and Diagnosis >> Heating and Air Conditioning >> Multi-Function Thermal Sensor / Switch >> Locations

Multi-Function Thermal Sensor / Switch: Locations

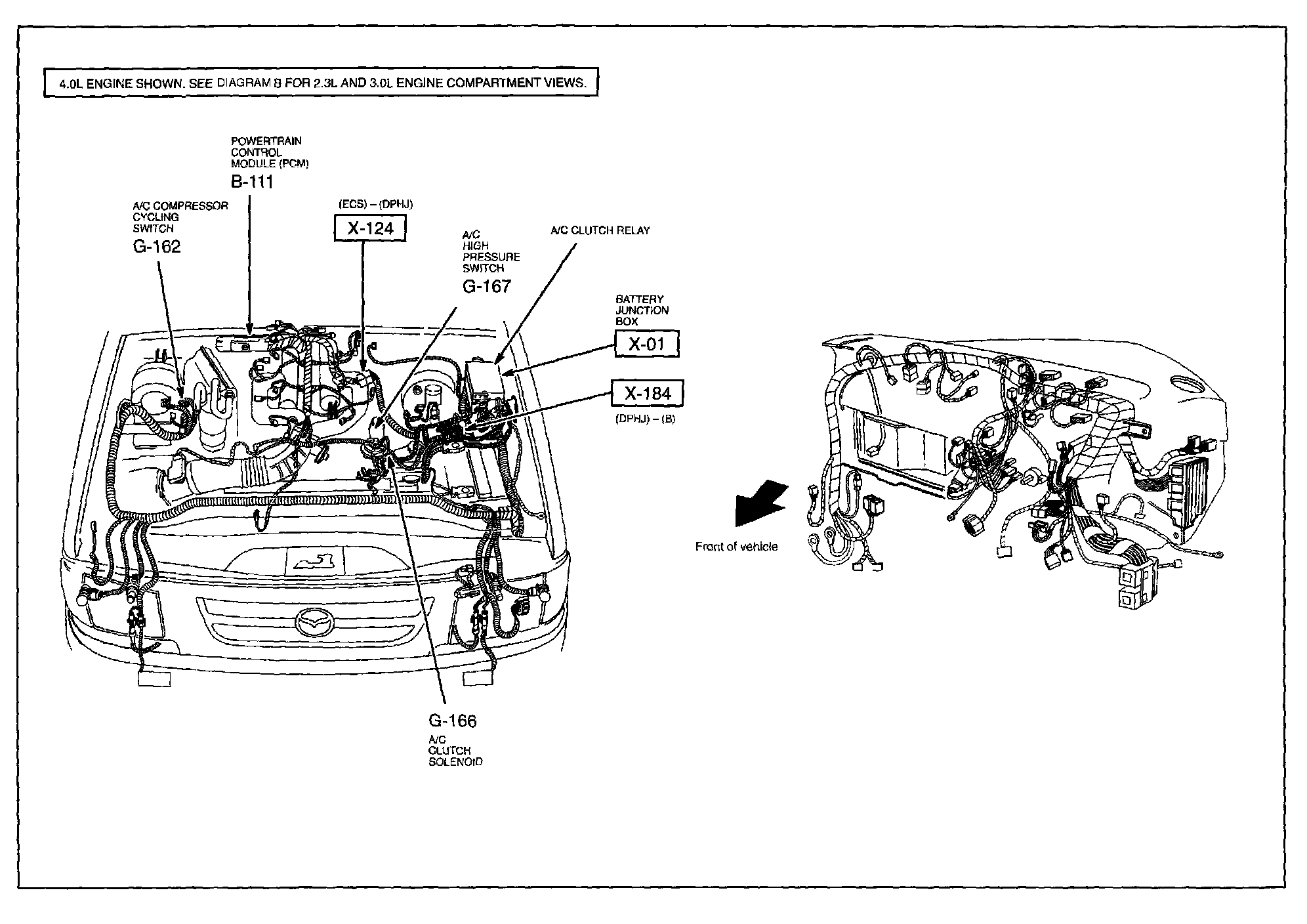

Routing View G-c:
