Automatic Transmission/Transaxle
>>
Automatic Transmission Cooling Components View
Automatic Transmission Cooling Components View

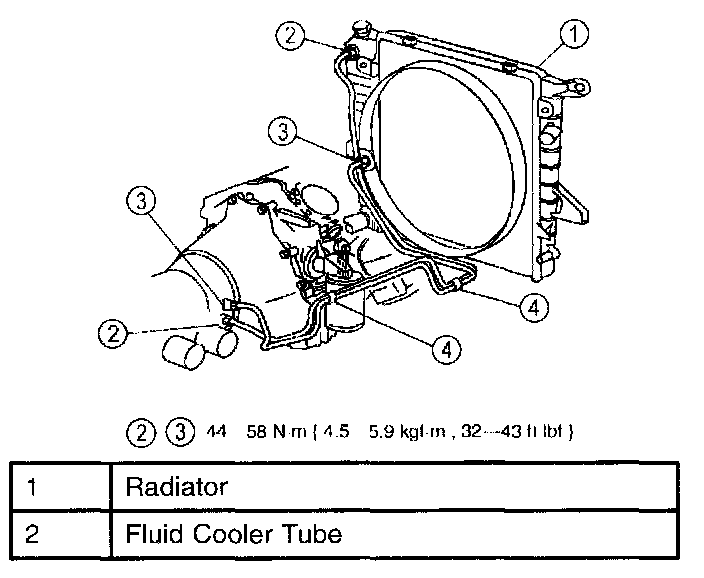

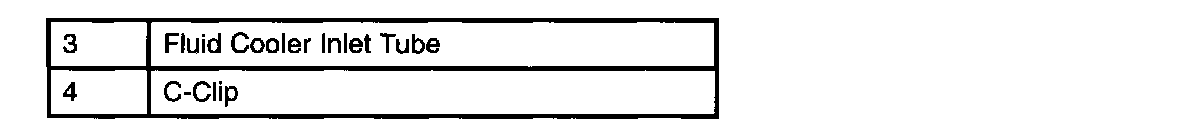

AUTOMATIC TRANSMISSION COOLING COMPONENTS VIEW
4.0L
