A/C Compressor Bracket

A/C COMPRESSOR BRACKET REMOVAL/INSTALLATION

1. Remove the A/C compressor.
2. Remove the power steering pump from the A/C compressor bracket.

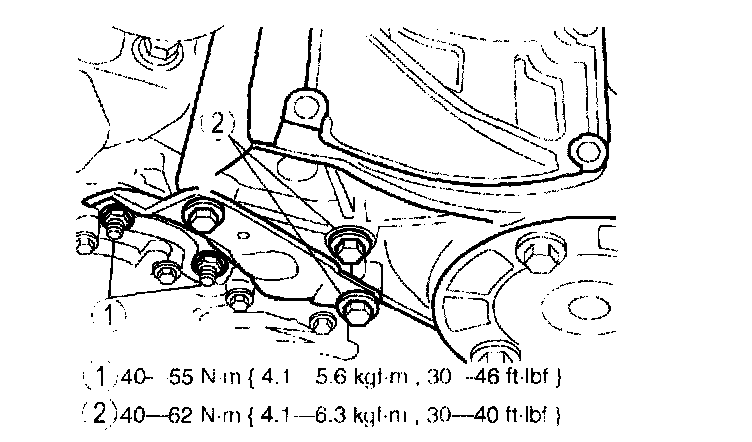

3. Remove the A/C compressor bracket.
1. Loosen the nuts.
2. Remove the bolts and remove the bracket.

4. Install in the reverse order of removal.
