Drive Belt: Service and Repair

DRIVE BELT REMOVAL / INSTALLATION-4.0L
1. Remove the air cleaner outlet tube.





2. Remove the drive belt.

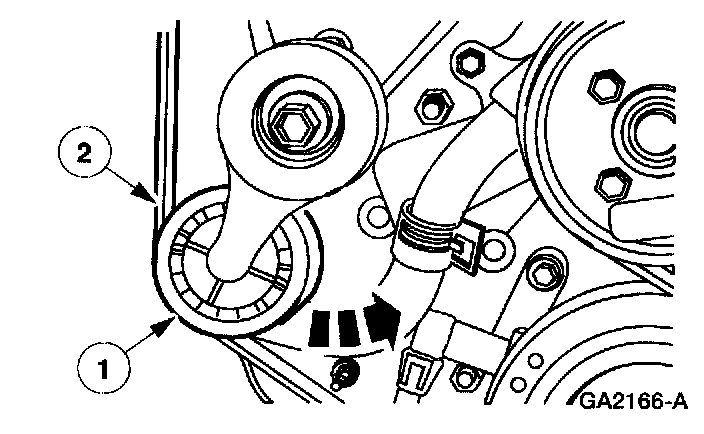

1. Rotate the drive belt tensioner counterclockwise.
2. Remove the drive belt.
3. To install, reverse the removal procedure.
