System Specifications

MANUAL TRANSMISSION AND CLUTCH SPECIFICATIONS





General Specifications








Manual Transmission Specifications5 Speed Overdrive (4.0L)

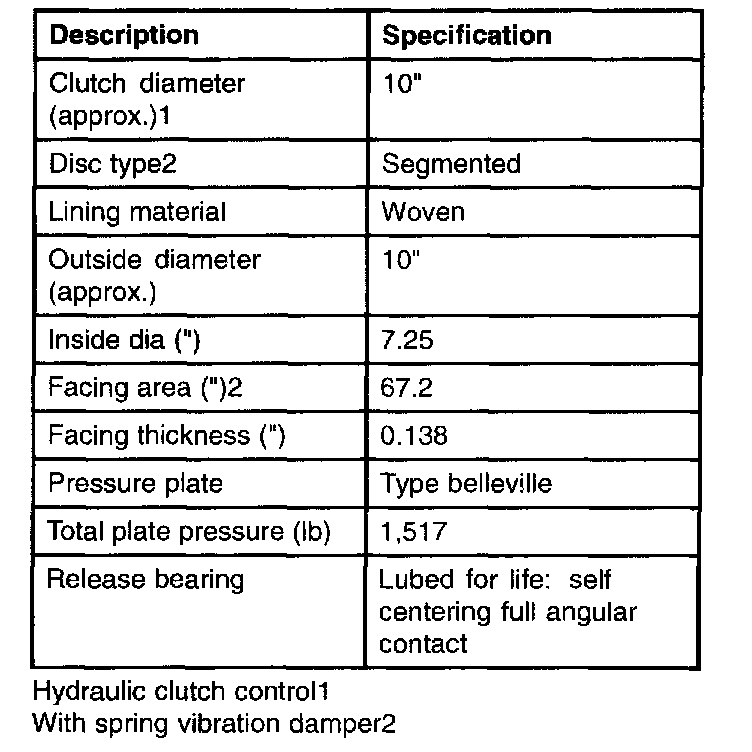

Clutch Specifications (4.0L)
