Home >> Mazda >> 2003 >> B4000 4WD V6-4.0L SOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Differential Assembly

Differential Assembly





Front Differential General Specifications





Rear Differential General Specifications

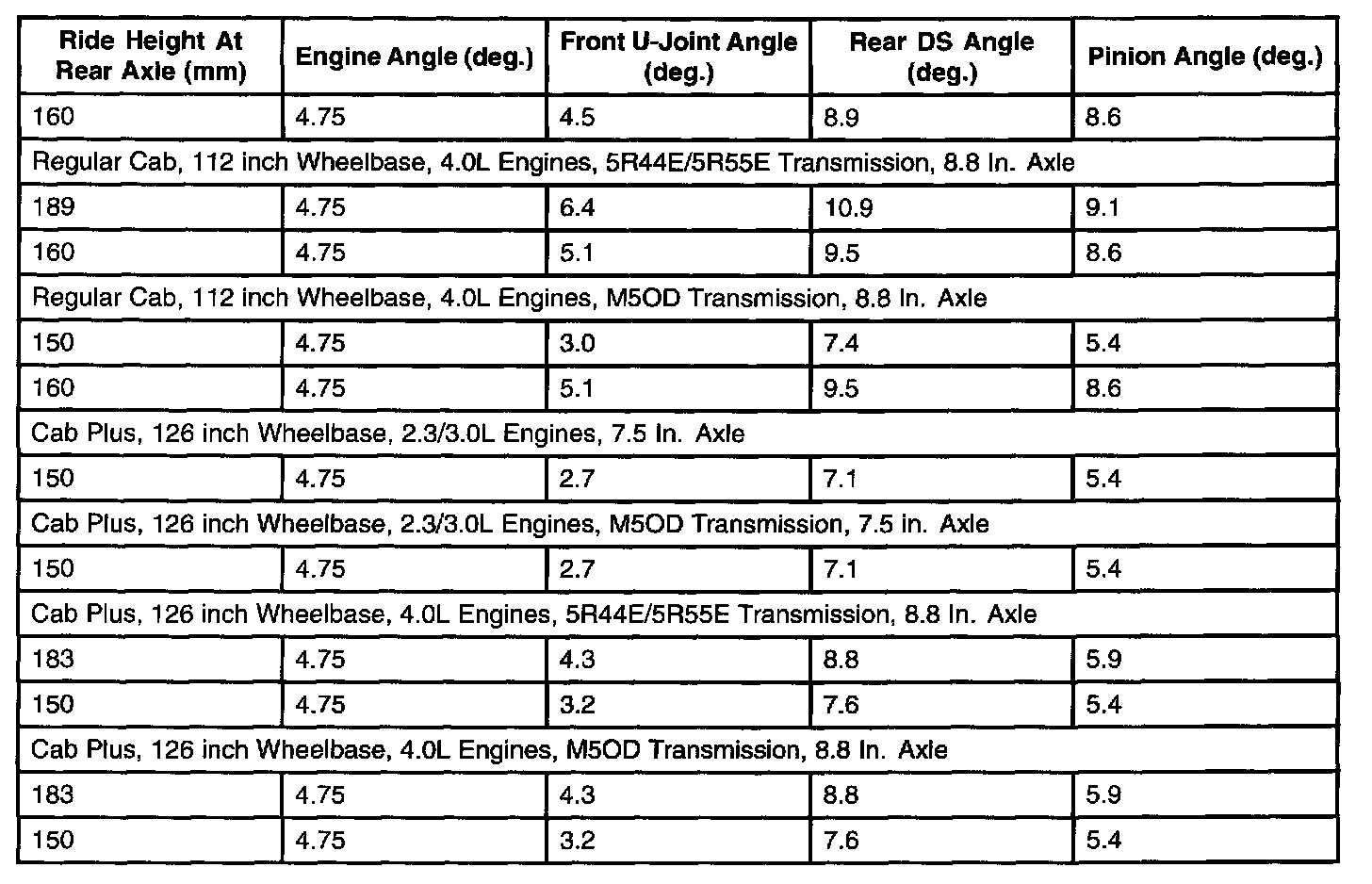

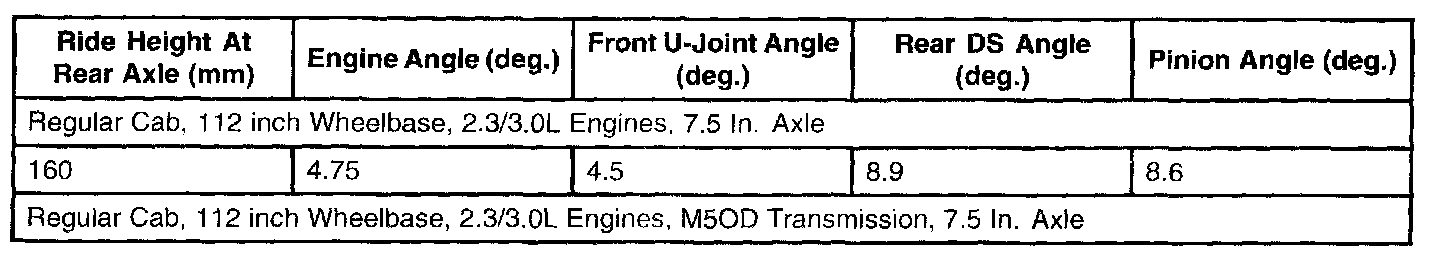

4x4, Rear Driveline Angles @ Curb Specifications
