Procedures

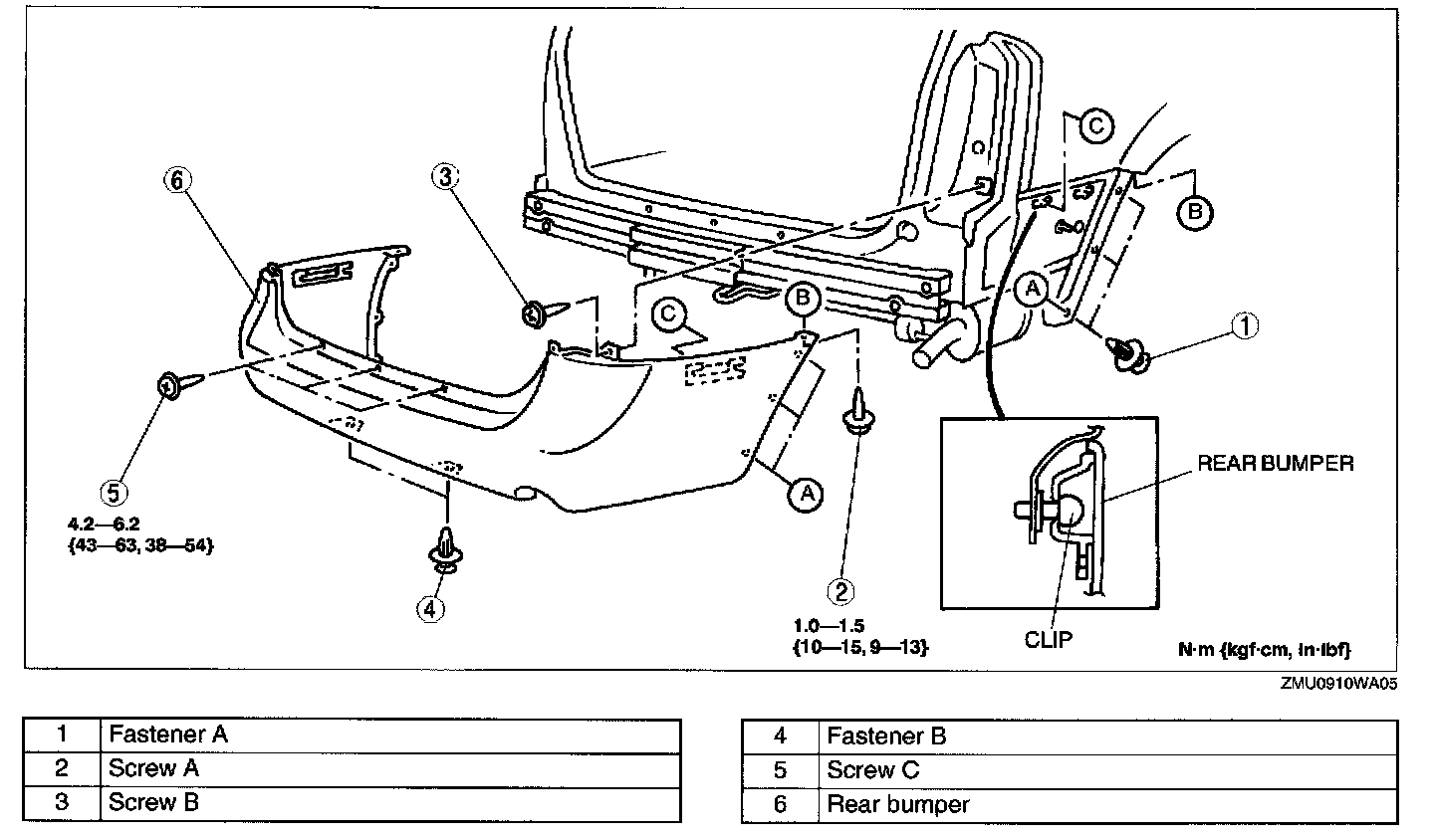

REAR BUMPER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the rear combination light.




3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
