Side Protector
SIDE PROTECTOR REMOVALWARNING: Using a razor with bare hands can cause injury. Always wear gloves when using a razor.

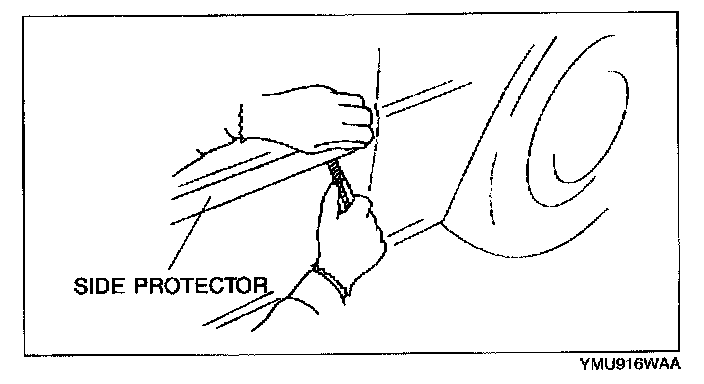

1. Pry the side protector end 20 - 30 mm {0.8 - 1.1 in} using a flathead screwdriver or a razor.
2. Pull the side protector toward you, then remove it.
NOTE: The side protector is installed with double-sided adhesive tape. If the side protector is difficult to remove, soften the double-sided adhesive tape using a hot air blower.
SIDE PROTECTOR INSTALLATION
1. Remove the adhesive remaining on the side protector (if it will be reused) and the body using a razor.
2. Remove any grease or dirt from the adhesion surface of the side protector (if it will be reused) and the body.

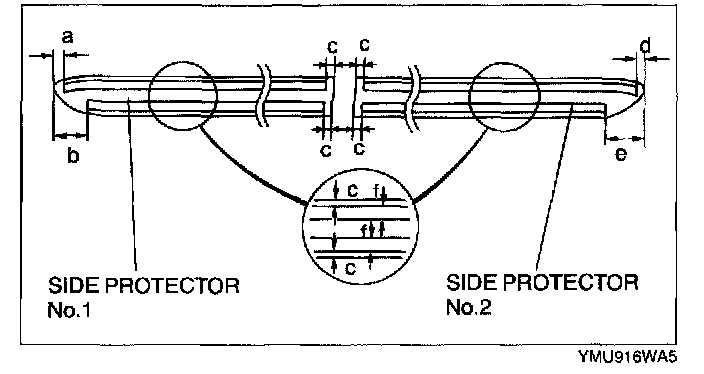

3. Attach double-sided adhesive tape to the side protector as shown (if it will be reused).
Clearance
a: 4.0 - 6.0 mm {0.16 - 0.23 in}
b: 29.0 - 31.0 mm {1.15 - 1.22 in}
c: 1.0 - 3.0 mm {0.04 - 0.11 in}
d: 6.0 - 8.0 mm {0.24 - 0.31 in}
e: 44.0 - 46.0 mm {1.74 - 1.81 in}
f: 10.0 mm {0.39 in}

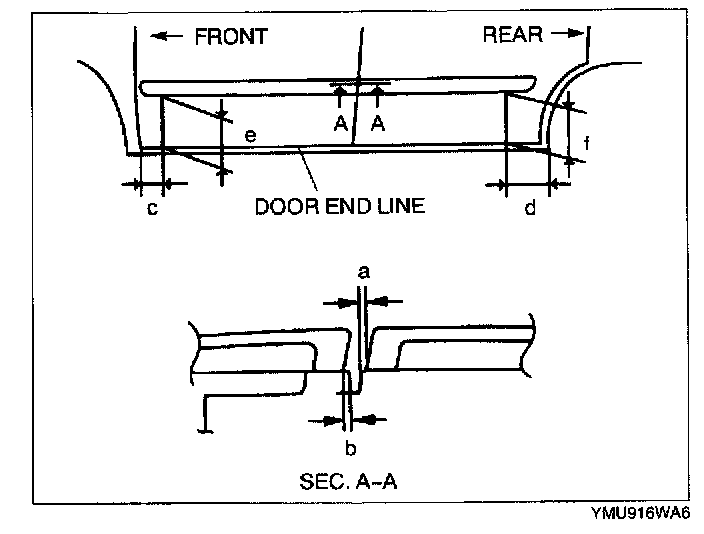

4. Peel off the backing paper from the double-sided adhesive tape and attach the side protector onto the body as shown.
Clearance
a: 1.0 - 4.0 mm {0.04 - 0.15 in}
b: 1.0 - 4.0 mm {0.04 - 0.15 in}
c: 100 mm {3.94 in}
d: 200 mm {7.84 in}
e: 251.5 - 254.5 mm {9.91 - 10.01 in}
f: 266.5 - 269.5 mm {10.50 - 10.61 in}
