Grille: Service and Repair

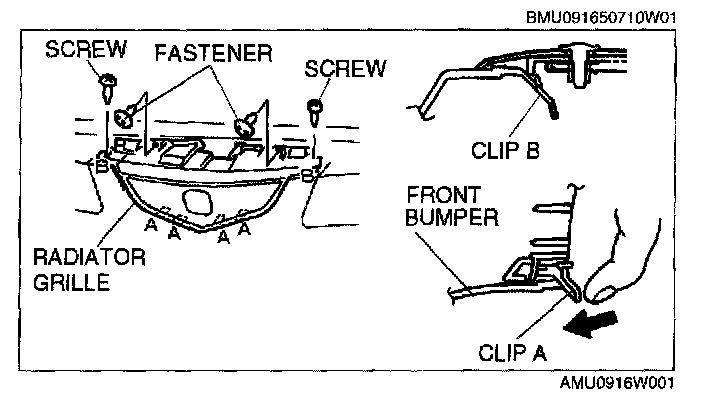

RADIATOR GRILLE REMOVAL/INSTALLATION






1. Remove the fasteners and screws.
2. Pull the radiator grille forward, then disengage clips A from the front bumper.
3. Install in the reverse order of removal.
