Side Panel

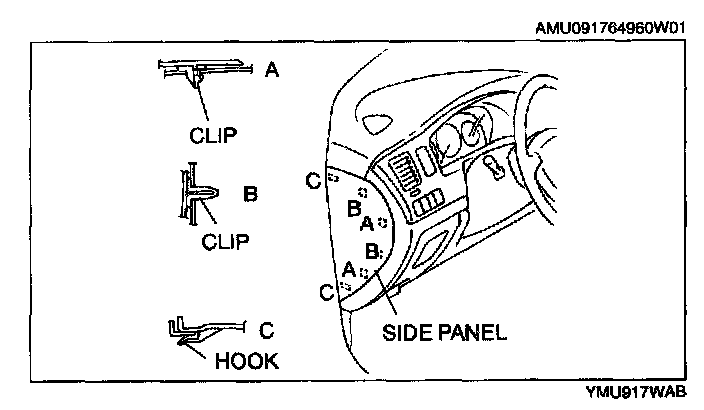

SIDE PANEL REMOVAL/INSTALLATION




1. Disengage clips A and B using a tape-wrapped flathead screwdriver.
2. Pull the side panel toward you, then disengage hooks C from dashboard, and remove the side panel.
3. Install in the reverse order of removal.
