Home
>>
Mazda
>>
2003
>>
MPV V6-3.0L DOHC
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Power Door Lock Switch
>>
Locations
>>
Front Door Lock-Link Switch
Front Door Lock-Link Switch

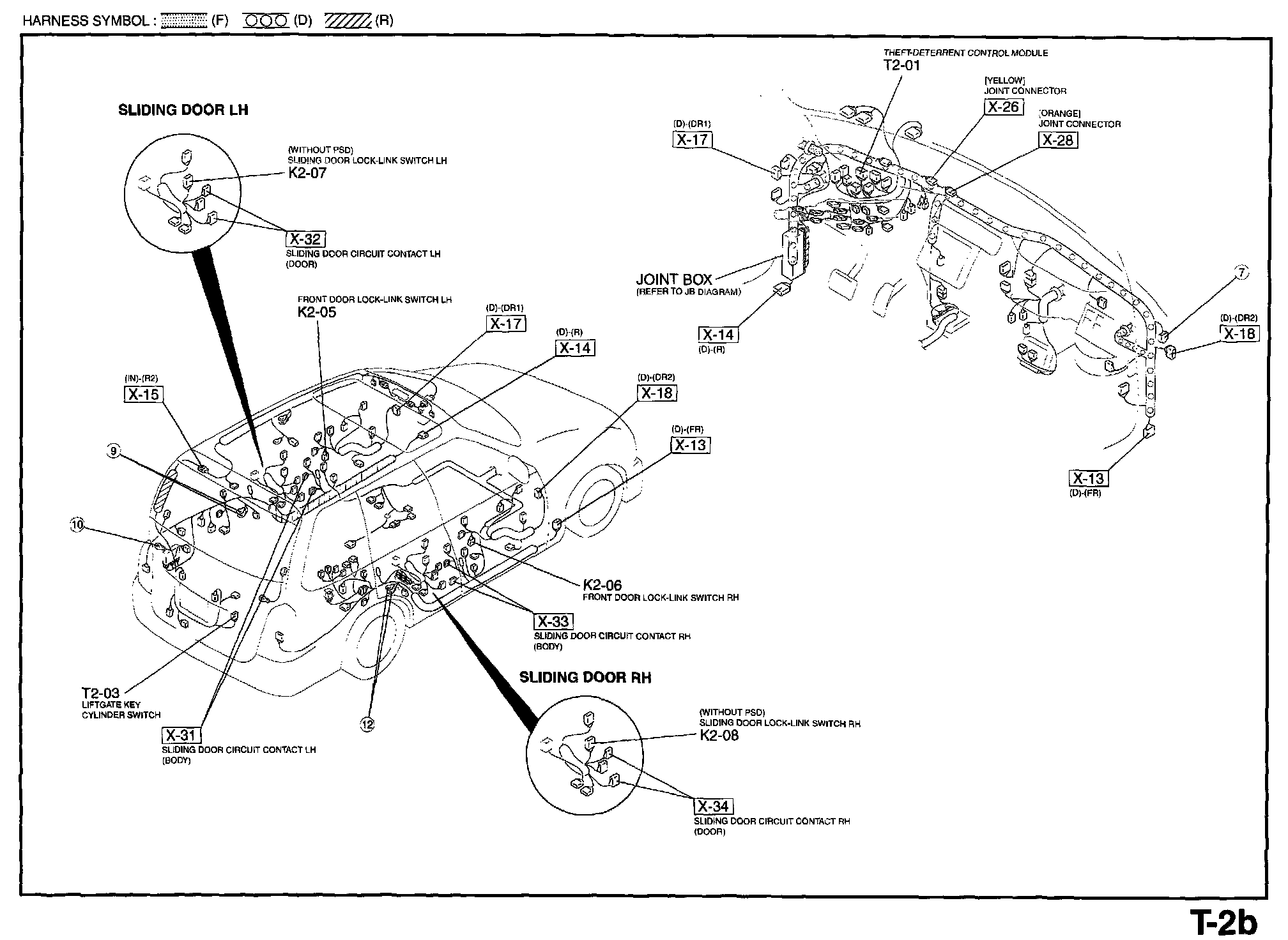

Routing View T-2b:
