Front

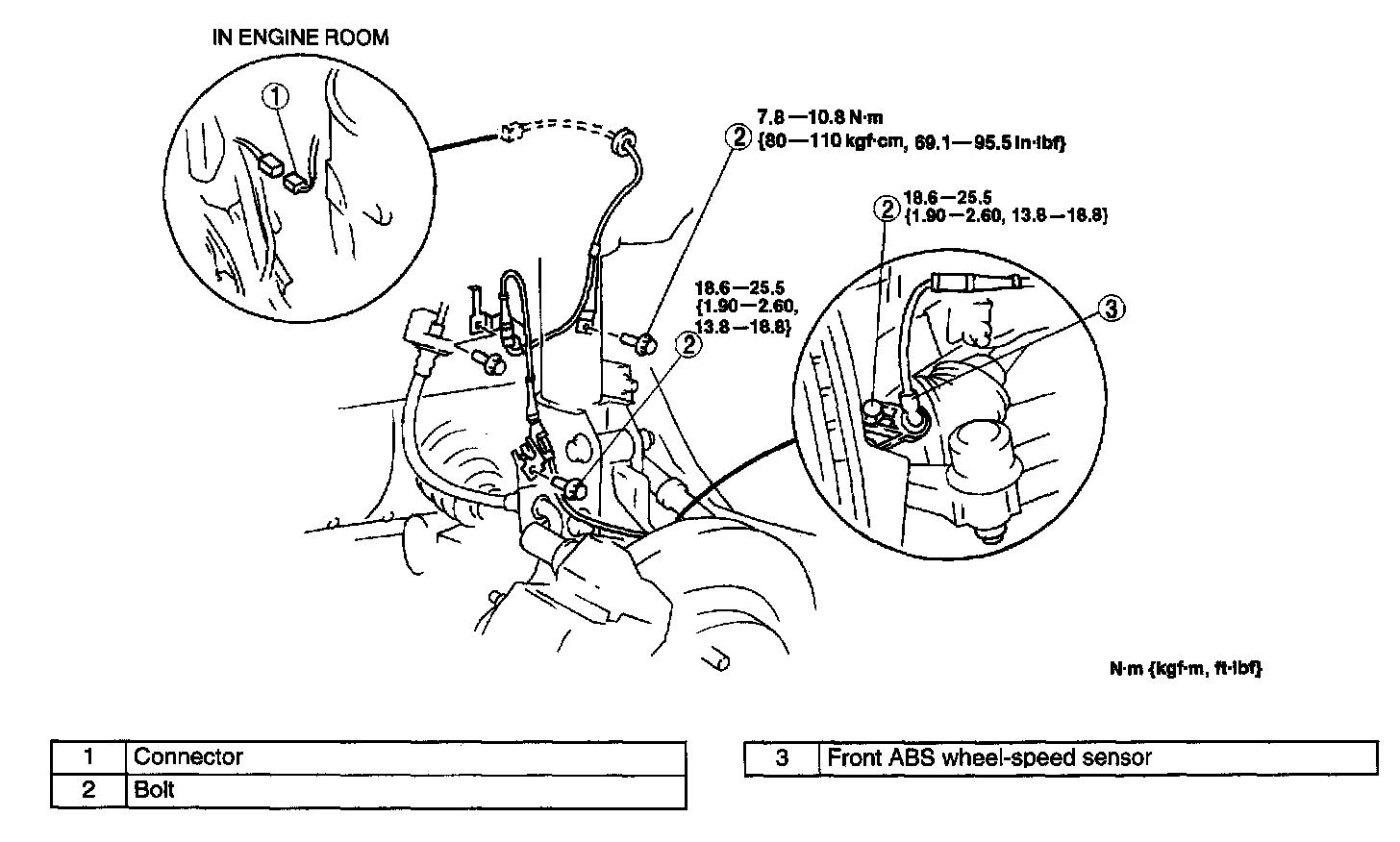

FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION
1. For left side, remove the air cleaner and air filter.





2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
