System Diagram

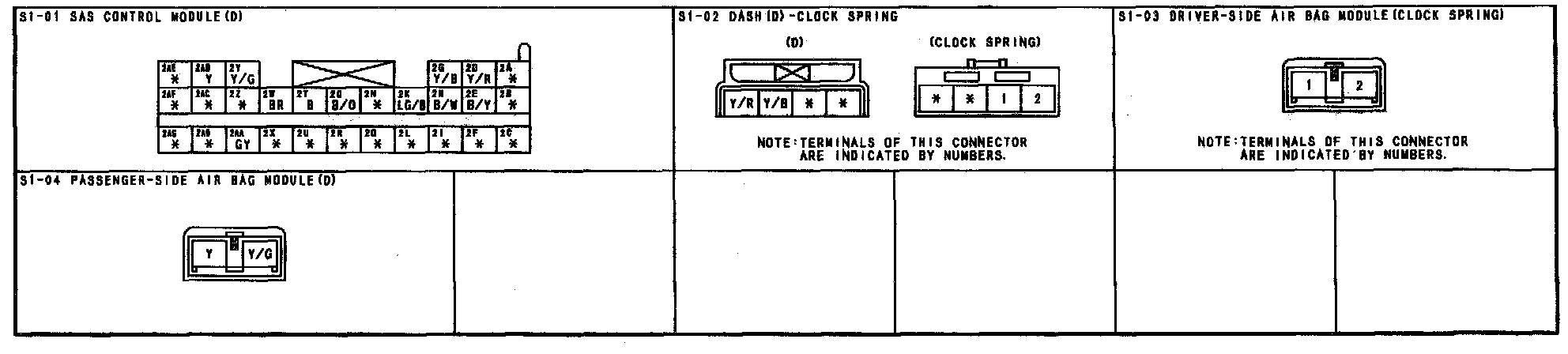

S-1a - Air Bag System / Side Air Bag System Connectors:

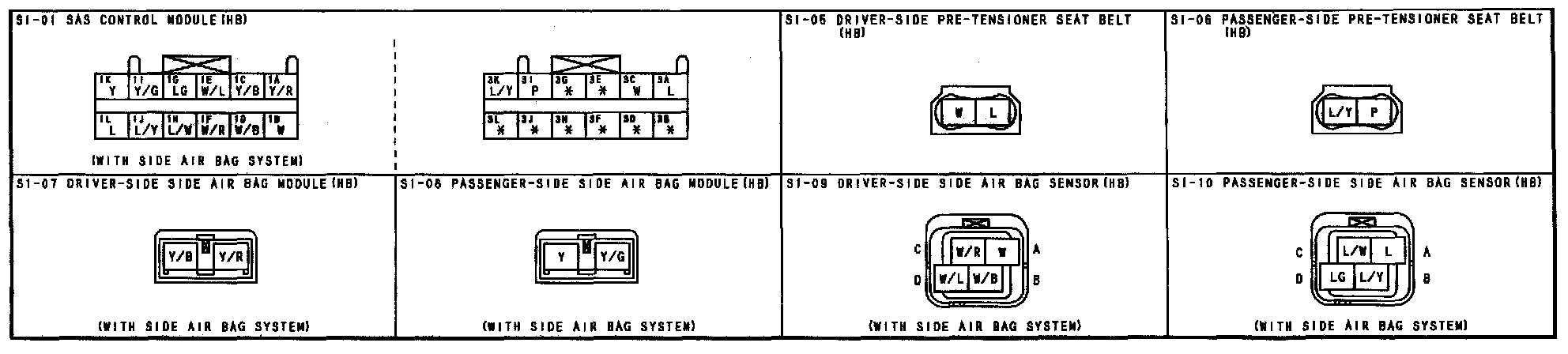

S-1b - Air Bag System / Side Air Bag System Connectors:
