Common Connector List

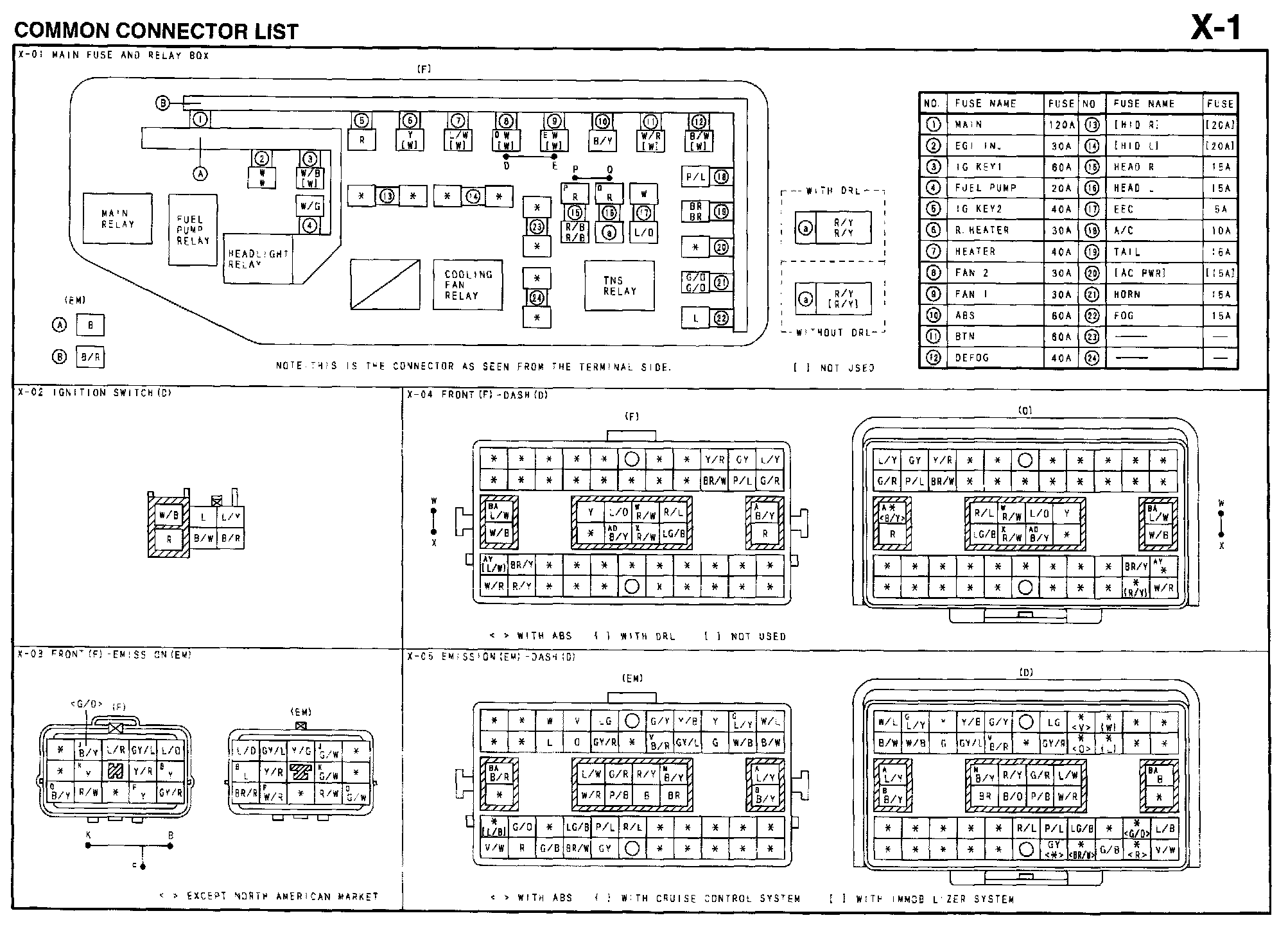

X-01 - X-05:

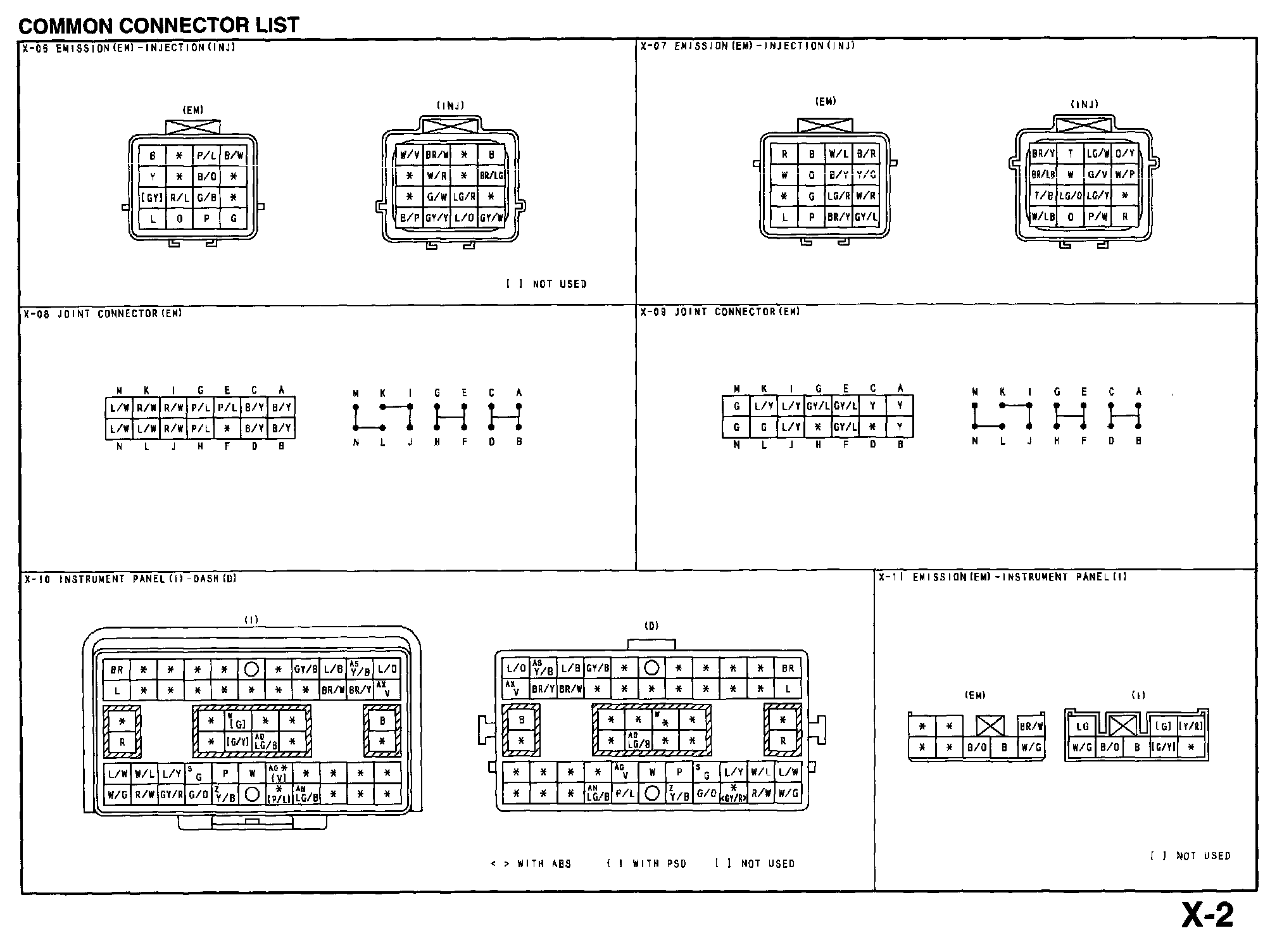

X-06 - X-11:

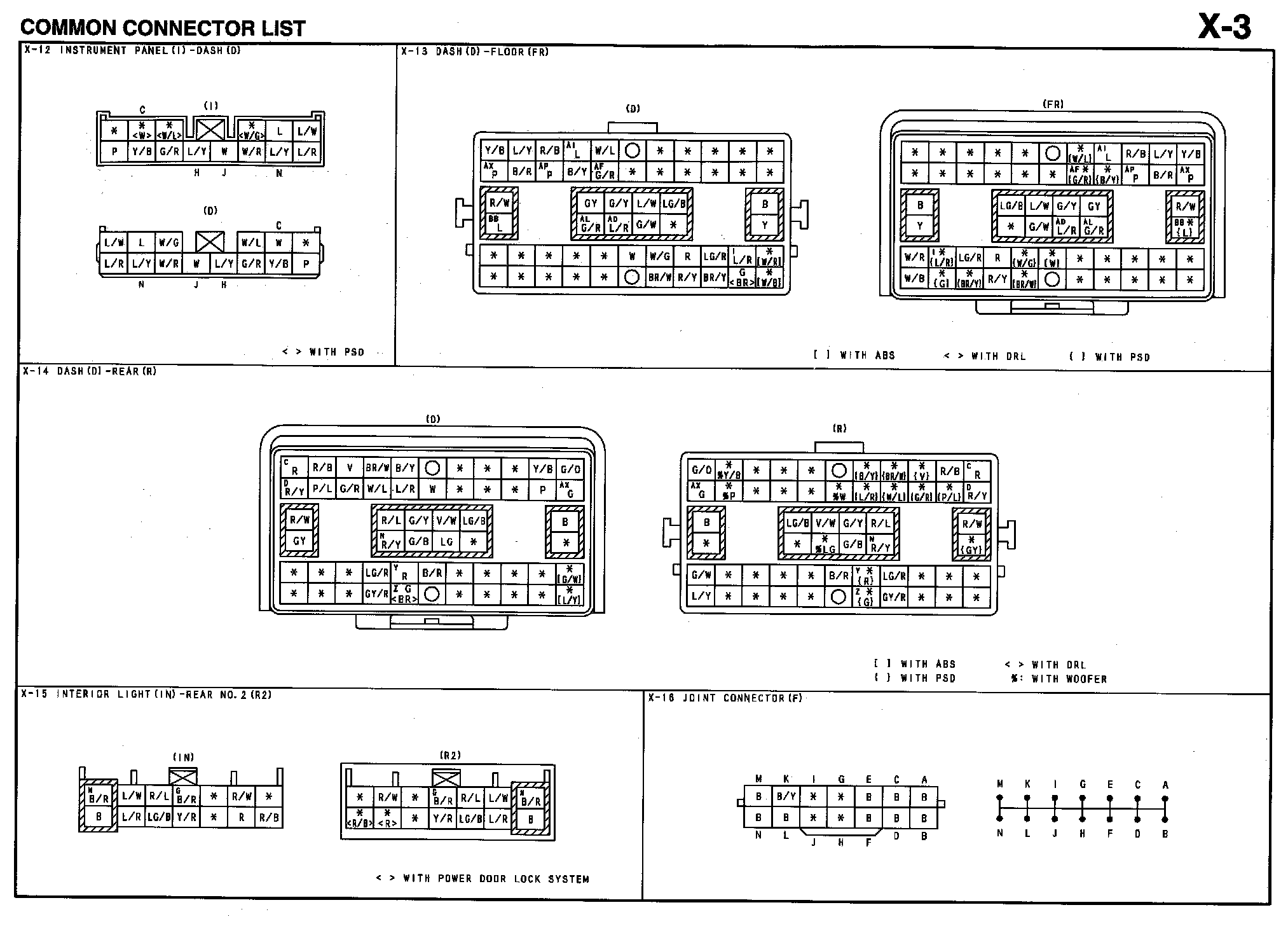

X-12 - X-16:

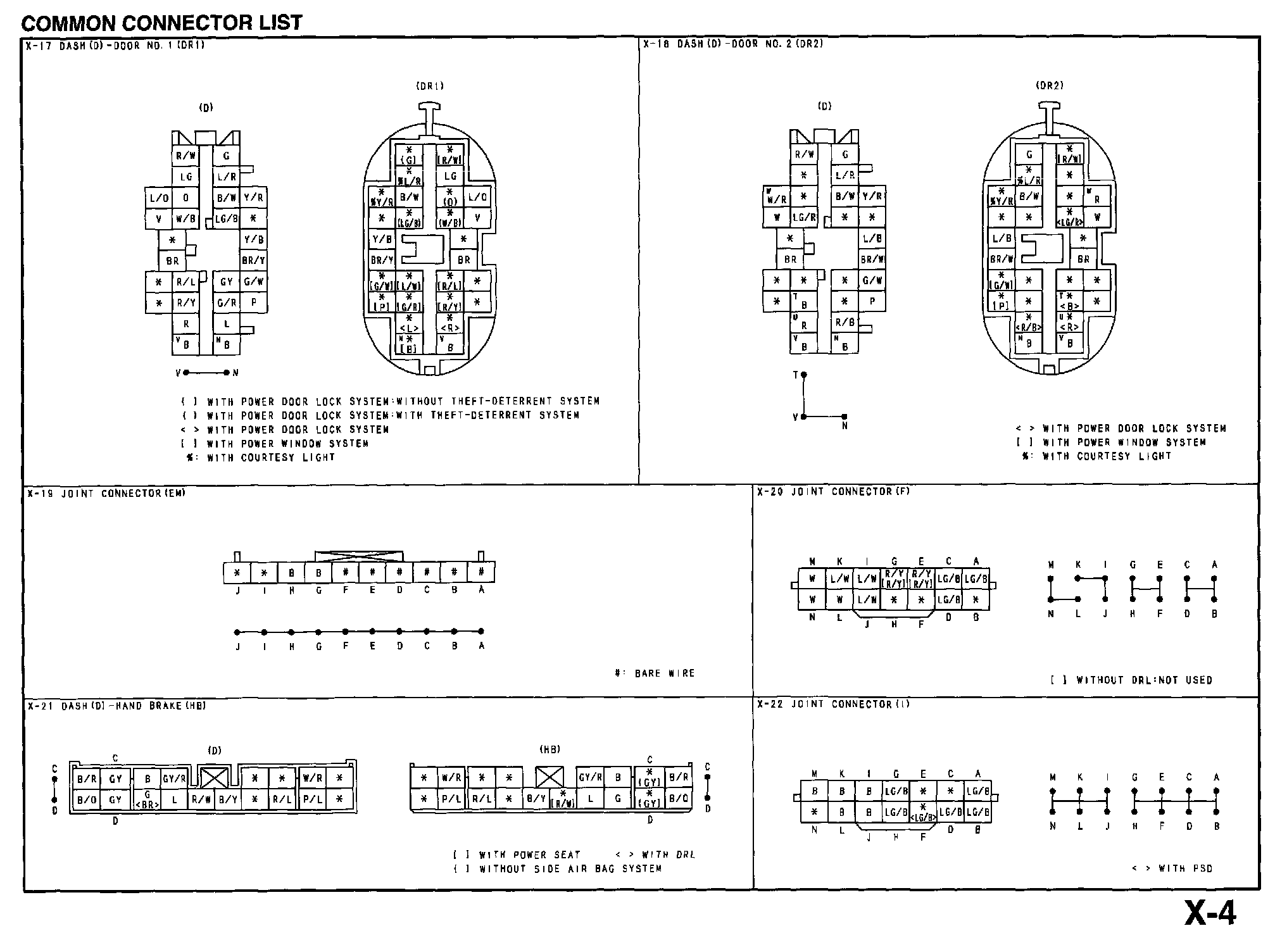

X-17 - X-22:
X-23 - X-28:

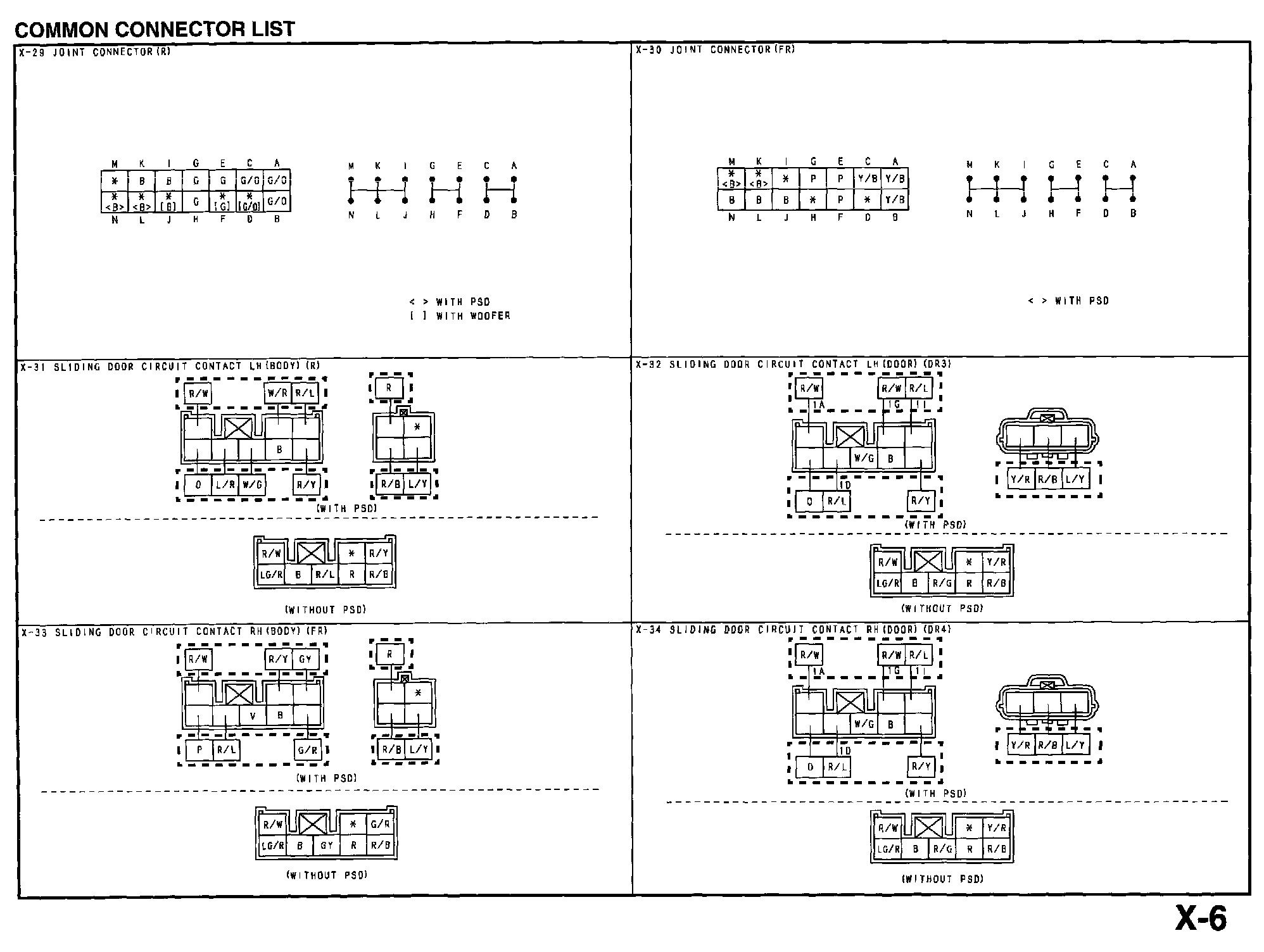

X-29 - X-34:

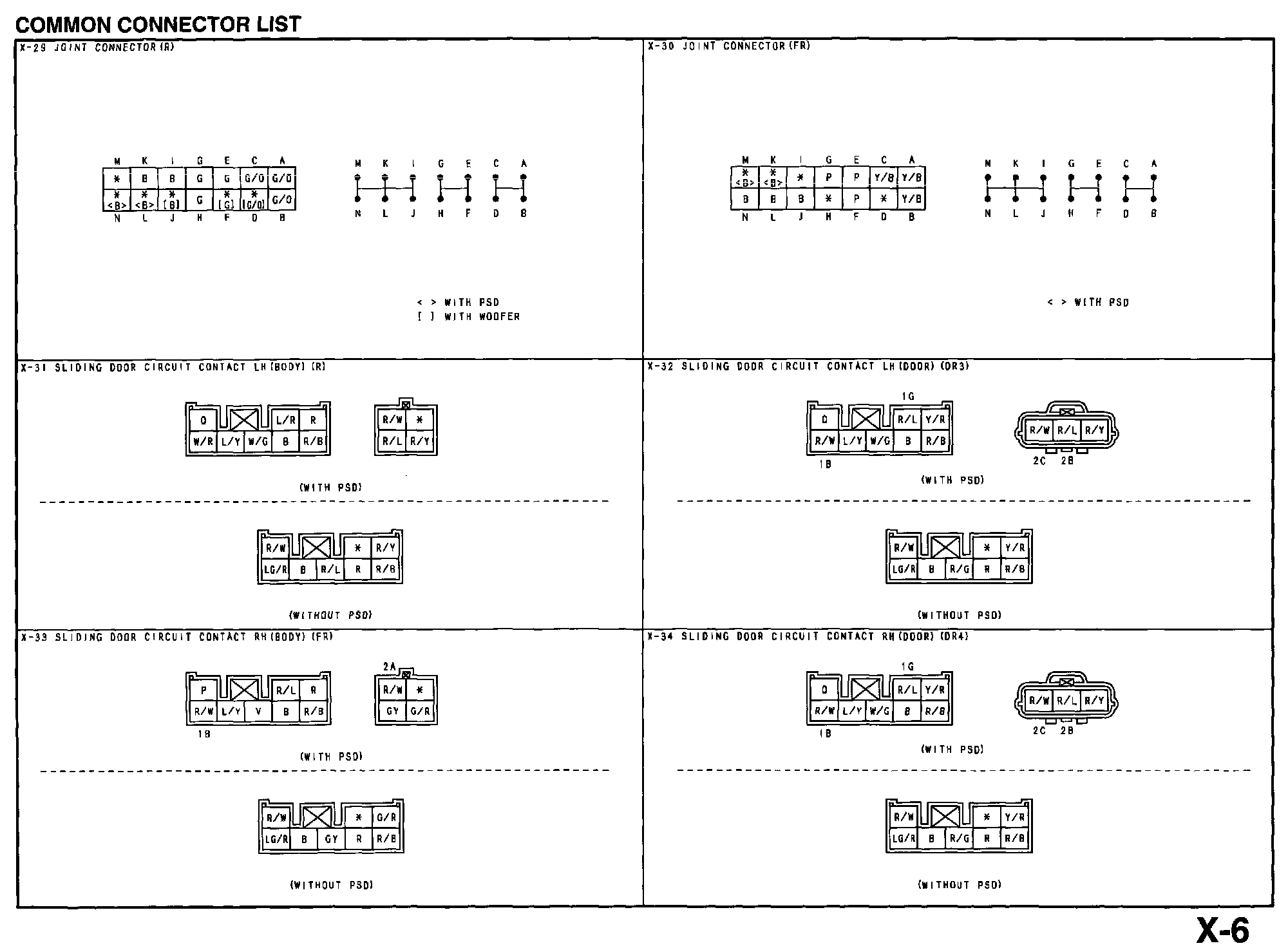

X-29 - X-34:
