Rear Resistor

REAR RESISTOR INSPECTION

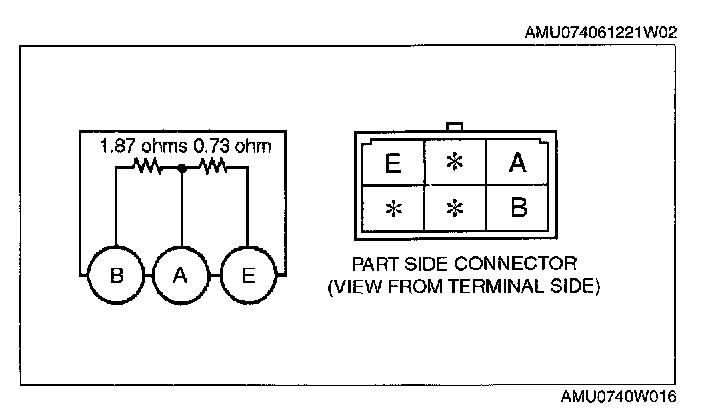

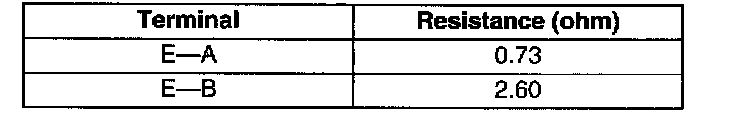

1. Inspect the resistance between the rear resistor terminals using an ohmmeter.
- If not as specified, replace the rear resistor.
