Rear Fan Switch

REAR FAN SWITCH INSPECTION

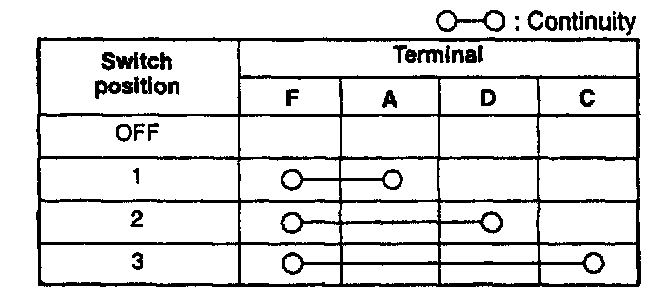

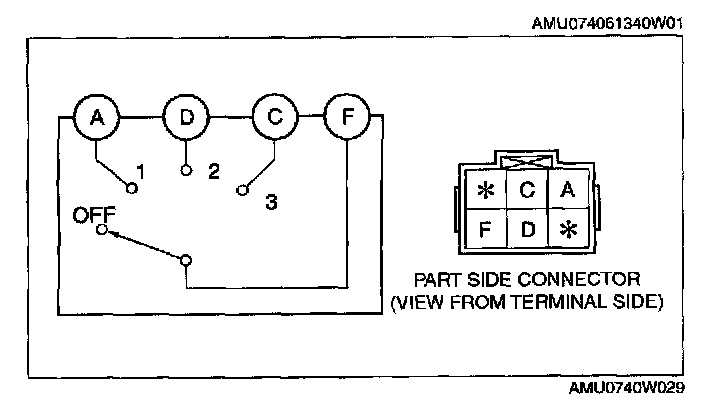

1. Inspect for continuity between the rear fan switch terminals using an ohmmeter.
- If not as specified, replace the rear fan switch.
