Rear Main Fan Switch

REAR MAIN FAN SWITCH INSPECTION

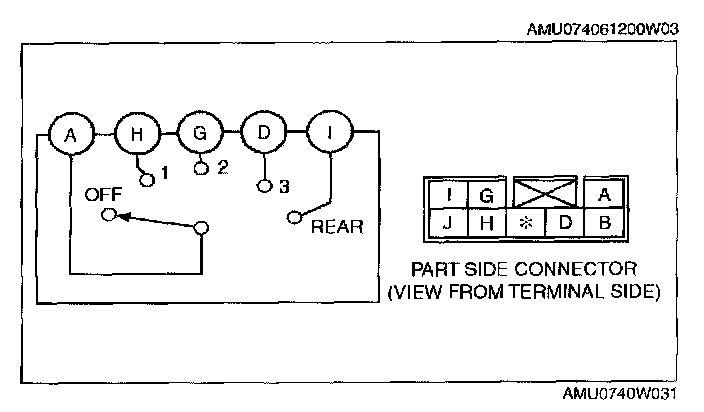

1. Inspect for continuity between the rear main fan switch terminals using an ohmmeter.

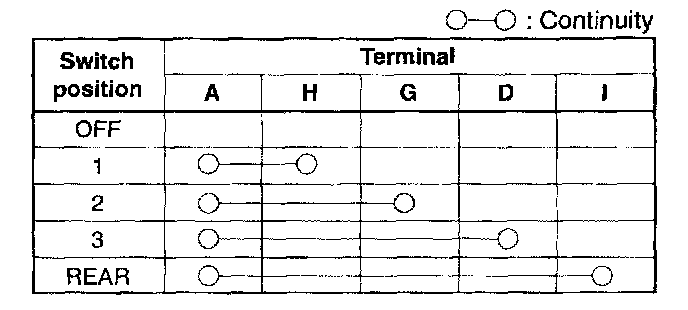

- If not as specified, replace the rear main fan switch.
