Front Blower Motor

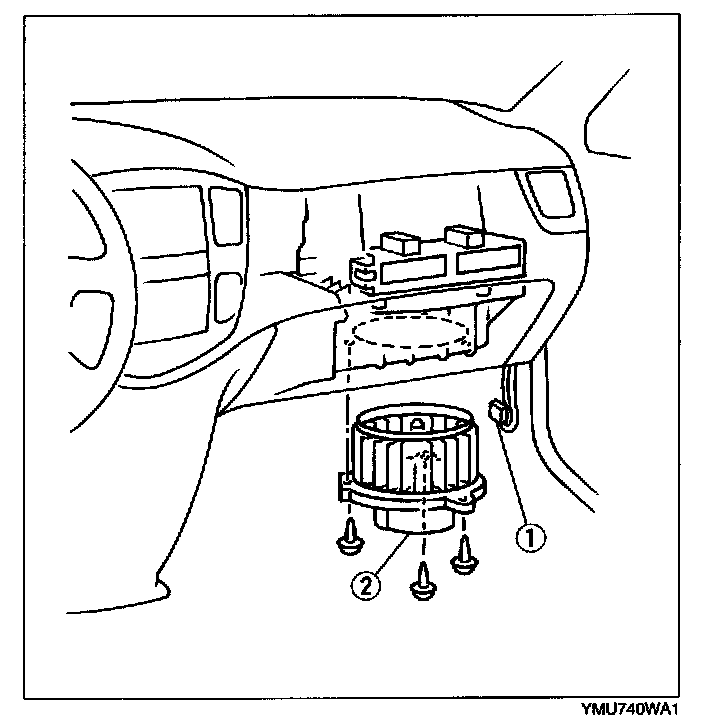

FRONT BLOWER MOTOR REMOVAL/INSTALLATION1. Disconnect the negative battery cable.
2. Remove the under cover.
3. Remove in the order indicated below.
1. Connector
2. Front blower motor
4. Install in the reverse order of removal.
1. Disconnect the negative battery cable.
2. Remove the under cover.
3. Remove in the order indicated below.
1. Connector
2. Front blower motor
4. Install in the reverse order of removal.
