Front Blower Motor

FRONT BLOWER MOTOR INSPECTION

1. Disconnect the front blower motor connector.

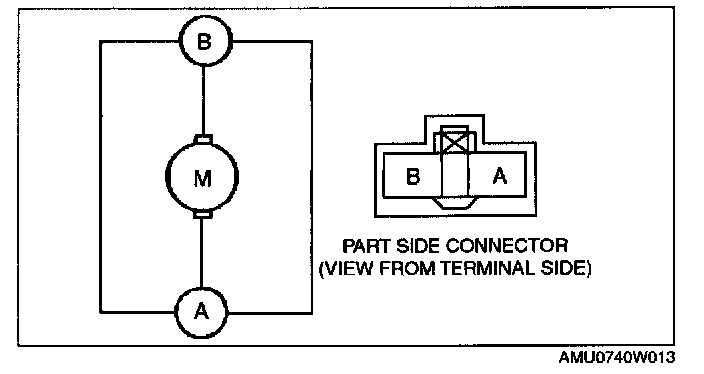

2. Connect battery positive voltage to terminal B and ground to terminal A of the front blower motor and verify if that the motor operates.
- If not as specified replace the front blower motor.
