Troubleshooting Index

FOREWORD
- Thoroughly read and understand the basic flow of troubleshooting in order to properly perform the procedures.
- When performing an asterisked (*) troubleshooting inspection, shake the wiring harness and connectors while doing the inspection to discover whether poor contact points are the cause of any intermittent malfunctions. If there is a problem, check to make sure connectors, terminals and wiring harnesses are connected correctly and undamaged.
- The areas for inspection (steps) are given according to various circuit malfunctions. Use the chart below to verify the symptoms of the trouble in order to diagnose the appropriate area.

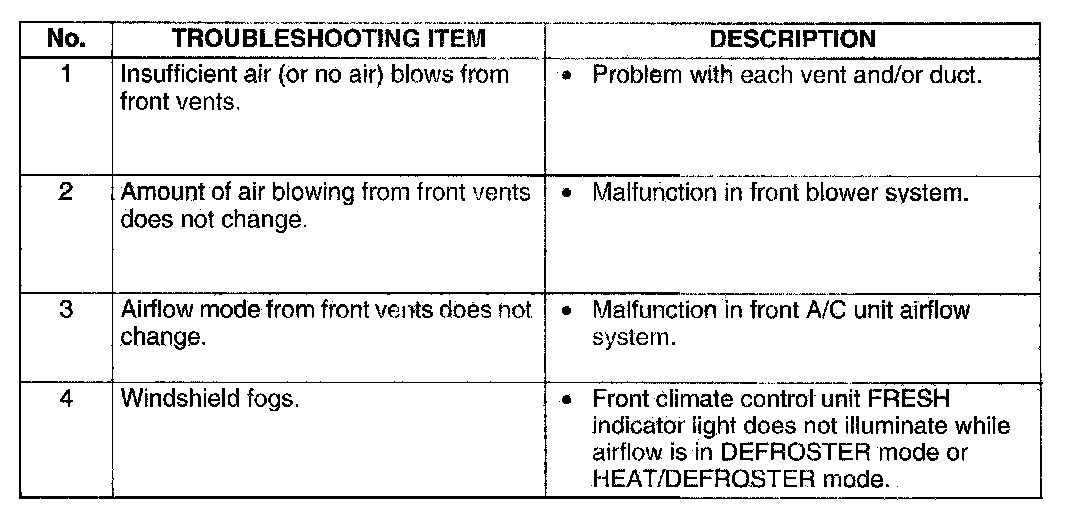

Troubleshooting Index Part 1:

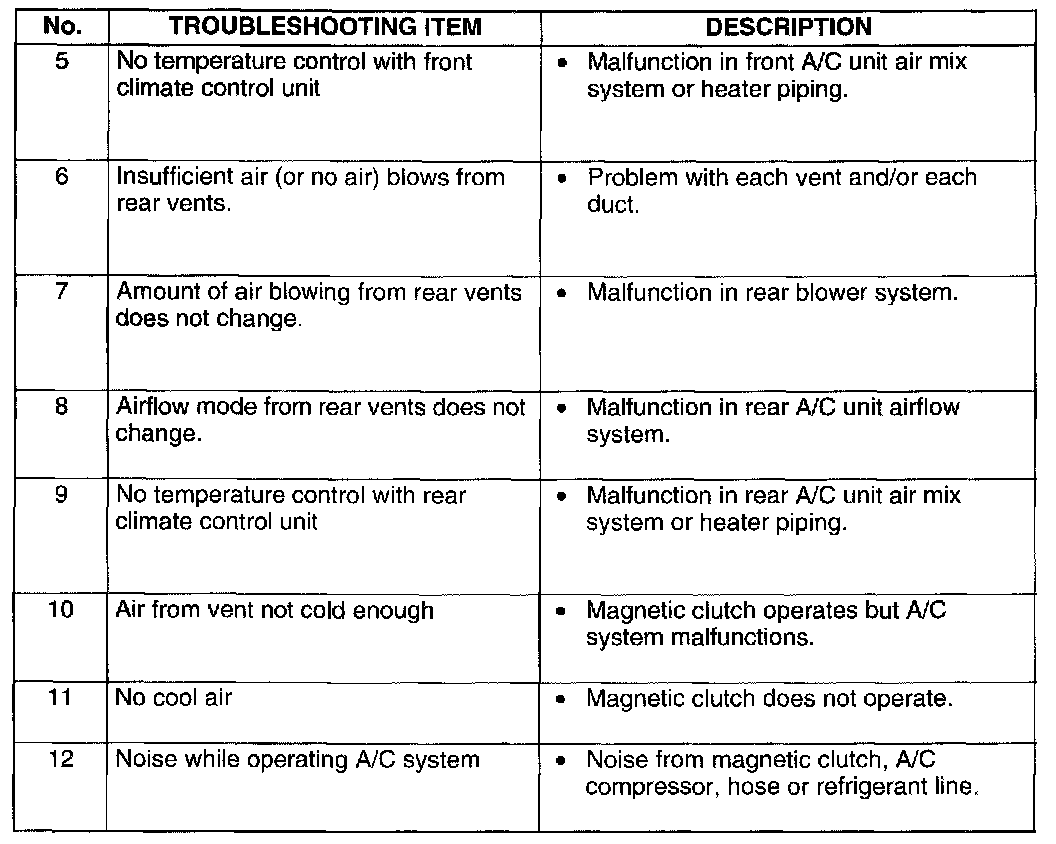

Troubleshooting Index Part 2:

TROUBLESHOOTING INDEX
