Cargo Lamp: Service and Repair

CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

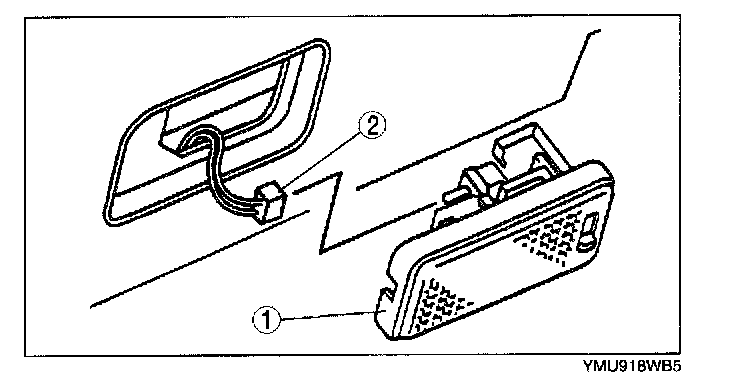

2. Remove in the order indicated below.
1. Cargo compartment light
(See Cargo Compartment Light Removal Note)
2. Connector

3. Install in the reverse order of removal.

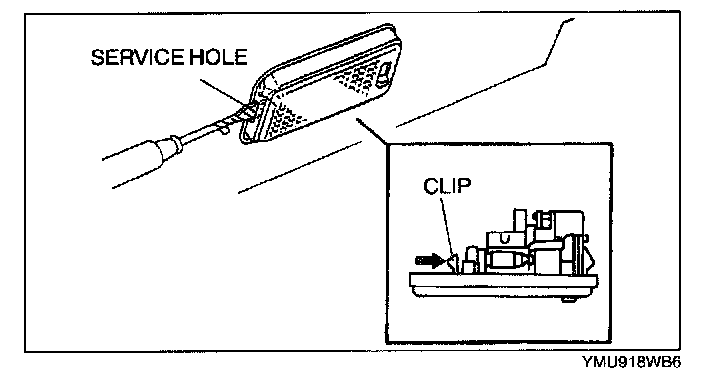

Cargo Compartment Light Removal Note




1. Insert a tape-wrapped flathead screwdriver into the service hole.
2. Press the clip with the flathead screwdriver to remove the cargo compartment light.
