License Plate Lamp: Service and Repair

LICENSE PLATE LIGHT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

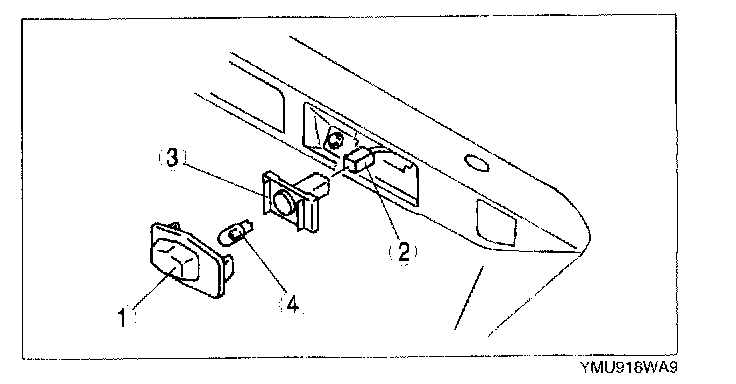

2. Remove in the order indicated below.
1. License plate light Removal Note)
(See License Plate Light
2. Connector
3. Socket
4. License plate light bulb

3. Install in the reverse order of removal

License Plate Light Removal Note

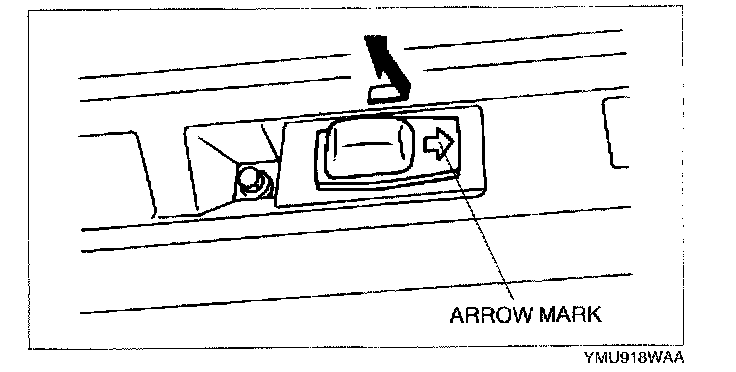

1. Slide the license plate light to the arrow mark and remove it.
