Vanity Lamp: Service and Repair

VANITY MIRROR ILLUMINATION BULB REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the sunvisor.

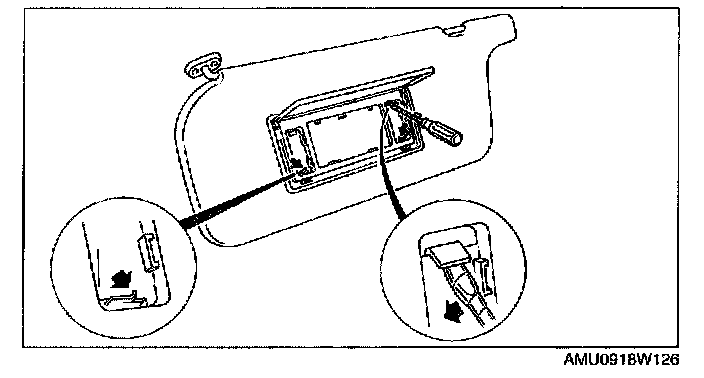

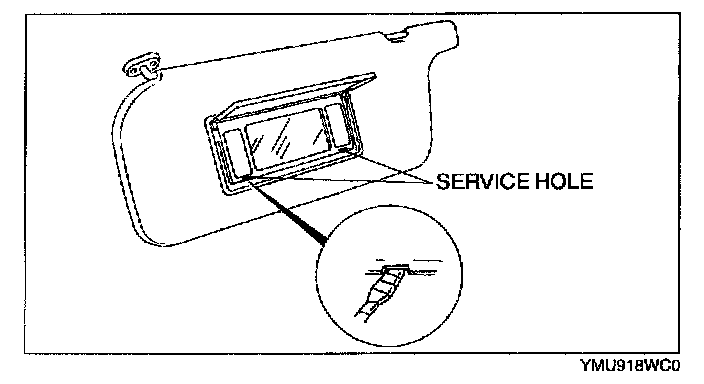

3. Insert a tape-wrapped flathead screwdriver into the service hole.
4. Twist the flathead screwdriver to remove the lens.




5. Pry the tabs slightly using a tape-wrapped flathead screwdriver.
6. Remove the mirror unit.




7. Remove the vanity mirror illumination bulbs.
8. Install in the reverse order of removal.
