A/T - OD Light Flashing/MIL ON/DTC P0706 Stored

05-001/05

2002-2005 MPV - O/D OFF INDICATOR LIGHT
FLASHING / MIL WITH DTC P0706

Note:
This bulletin supersedes the following TSB(s): 5-006/03. Please update your records accordingly.

BULLETIN NOTE
This bulletin supersedes the previous bulletins 05-006/03 issued on 12/18/03, and 05-001/05 issued on 01/07/05. The REPAIR PROCEDURE, PART(S) and WARRANTY INFORMATION have been revised.

APPLICABLE MODEL(S)/VINS

2002 - 2005 MPV vehicles with VINs of JM3LW28**50539650 or lower (produced before Nov. 5, 2004)

DESCRIPTION

On some vehicles, the O/D OFF indicator may be flashing and/or the MIL is ON with DTC P0706 stored.

The Transaxle Range (TR) Switch electrical contact area for the D and 3 ranges may not be large enough. This may cause the Transaxle Control Module (TCM) to misjudge the position of the gear shift lever, and set the DTC.

To prevent this concern, the electrical contact area in the Transaxle Range (TR) Switch has been increased to allow detection of the D range signal in a wider range.

Customers having this concern should have their vehicle repaired using the following repair procedure.

REPAIR PROCEDURE

1. Verify customer concern.

2. Replace Transaxle Range (TR) Switch according to the Workshop Manual (Section 05-17 TRANSAXLE RANGE (TR) SWITCH REMOVAL/INSTALLATION).

3. Verify repair.





PART(S) INFORMATION

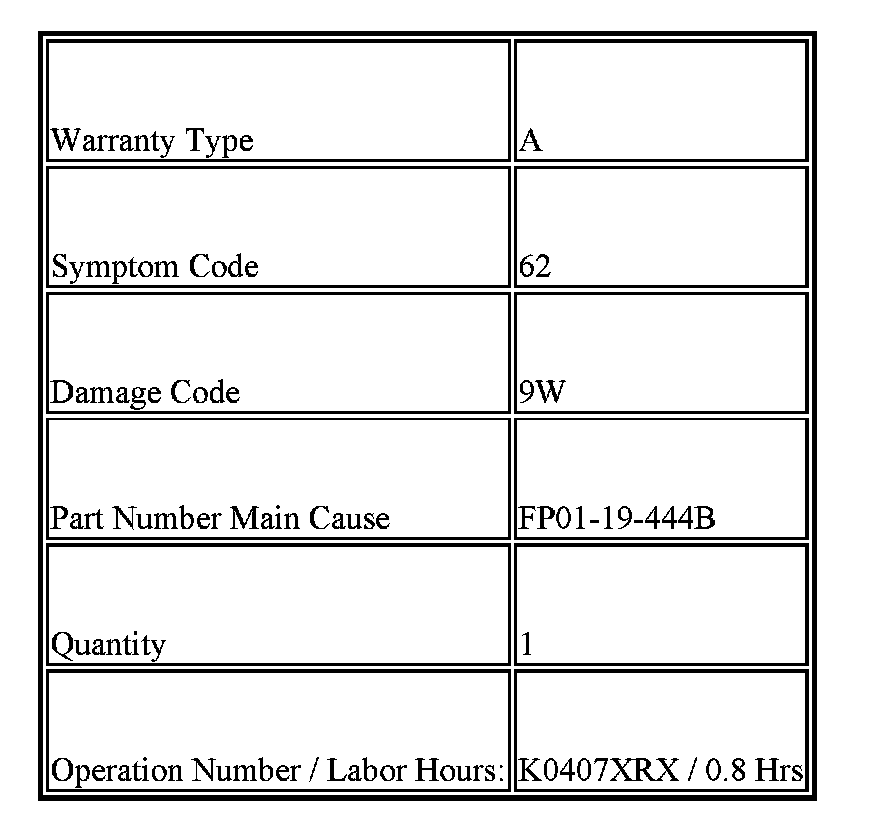

WARRANTY INFORMATION

NOTE:

^ This warranty information applies only to verified customer complaints on vehicles eligible for warranty repair. Refer to the SRT microfiche for warranty term information.

^ Additional diagnostic time cannot be claimed for this repair.
