Condenser Fan: Testing and Inspection

CONDENSER FAN INSPECTION




1. Disconnect the condenser fan connector.

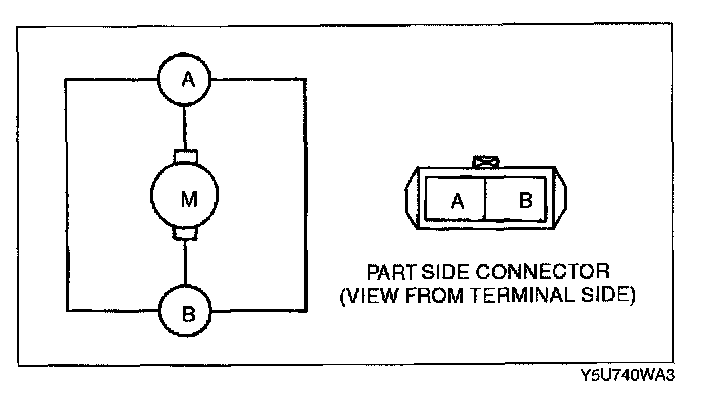

2. Connect B+ to terminal A and ground to terminal B of the condenser fan, and verify that air blows towards the engine.
- If the condenser fan does not operate, replace the condenser fan.
