Brake Pedal Assy: Service and Repair
BRAKE PEDAL AND BRACKET Removal and Installation 1.
Remove the brake pedal position
(BPP) switch.
2.
If equipped, remove the cruise control deactivator switch.
3.

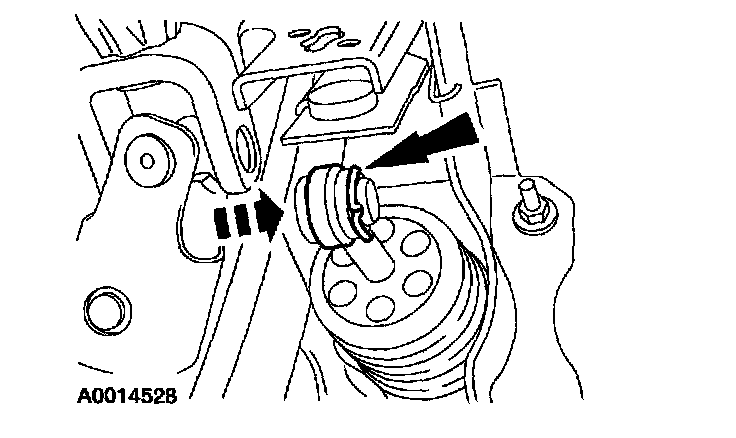

Disconnect the push rod from the brake pedal pin.
1.
Remove the cotter pin and bushing.
4.

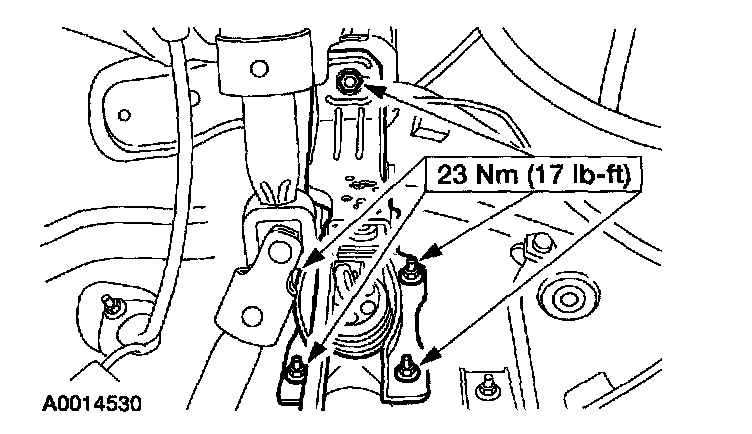

Remove the brake pedal and bracket.
1.
Remove the nuts.
5.
To install, reverse the removal procedure
