Defroster Duct
Removal and Installation 1.
Remove the instrument panel. For additional information, refer to INSTRUMENT PANEL.
2.

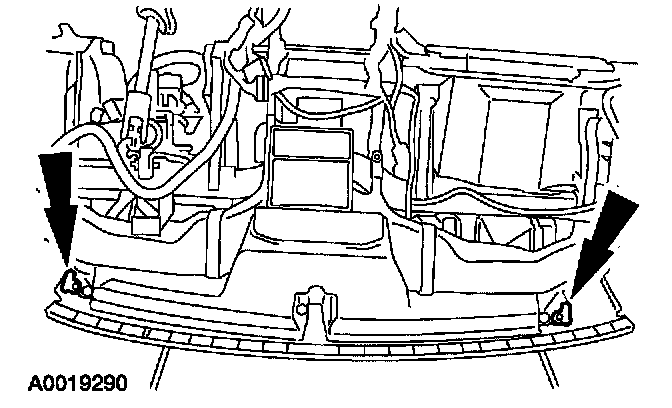

Remove the screws and the retaining guides.
3.

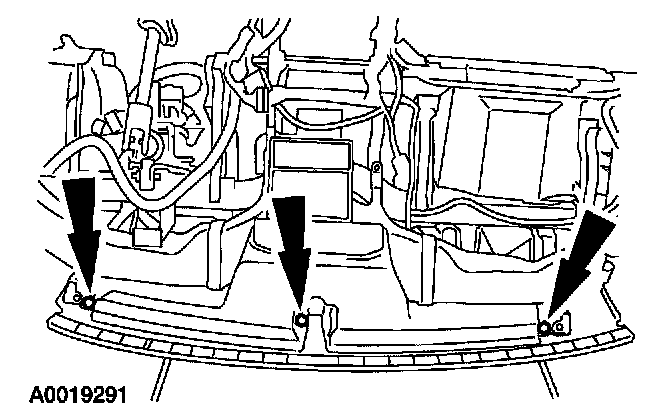

Remove the screws and remove the duct.
4.
To install, reverse the removal procedure.
