EC-AT Operation Chart

EC-AT OPERATION CHART

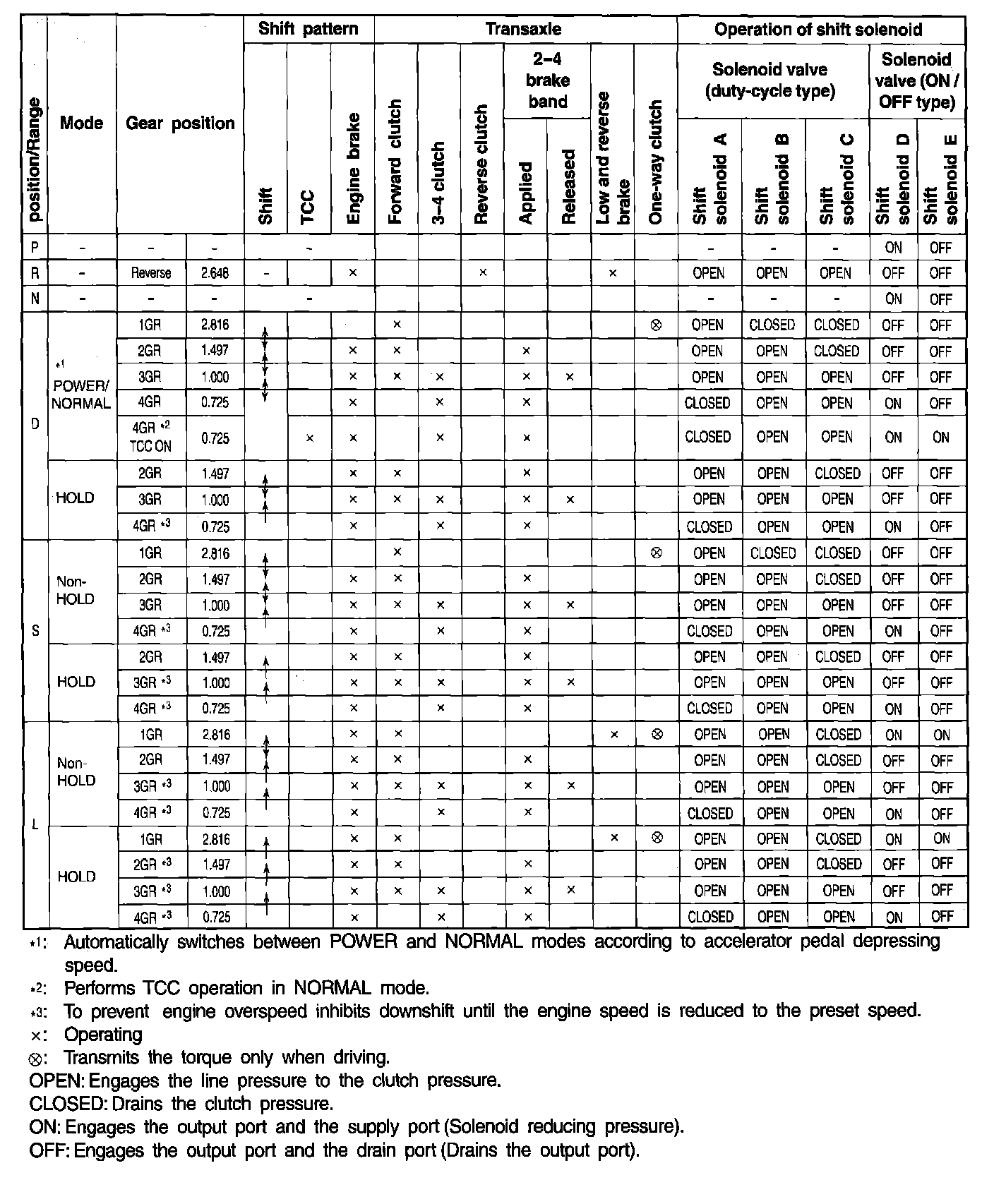

4AT

OPEN: Engages the line pressure to the clutch pressure.
CLOSED: Drains the clutch pressure.
ON: Engages the output port and the supply port (Solenoid reducing pressure).
OFF: Engages the output port and the drain port (Drains the output port).

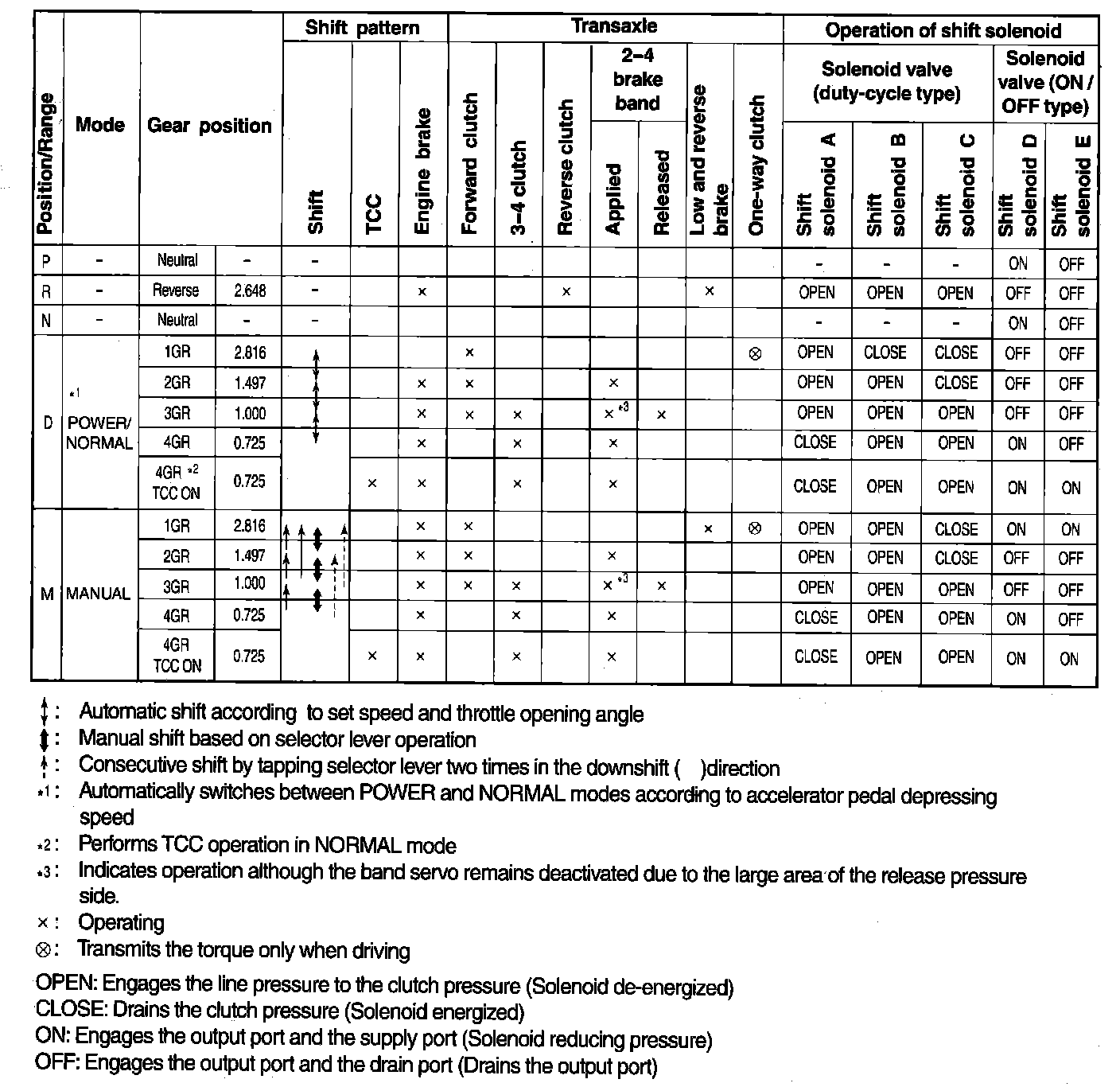

Sport AT





OPEN: Engages the line pressure to the clutch pressure (Solenoid de-energized)
CLOSE: Drains the clutch pressure (Solenoid energized)
ON: Engages the output port and the supply port (Solenoid reducing pressure)
OFF: Engages the output port and the drain port (Drains the output port)
