Oil Pump Structure

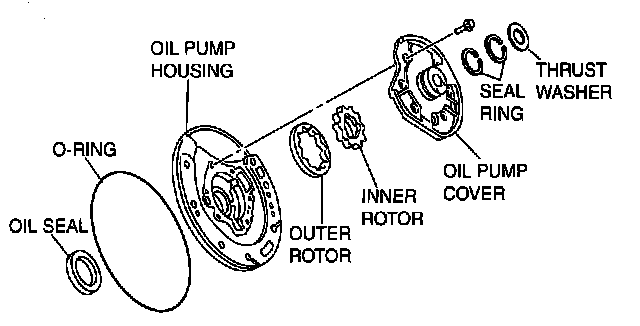

OIL PUMP STRUCTURE





^ The outer rotor and the inner rotor are installed in the oil pump housing.
^ The inner rotor in the oil pump housing is driven by the torque converter.
