Front Internal Gear One-Way Clutch Component Disassembly/Assembly

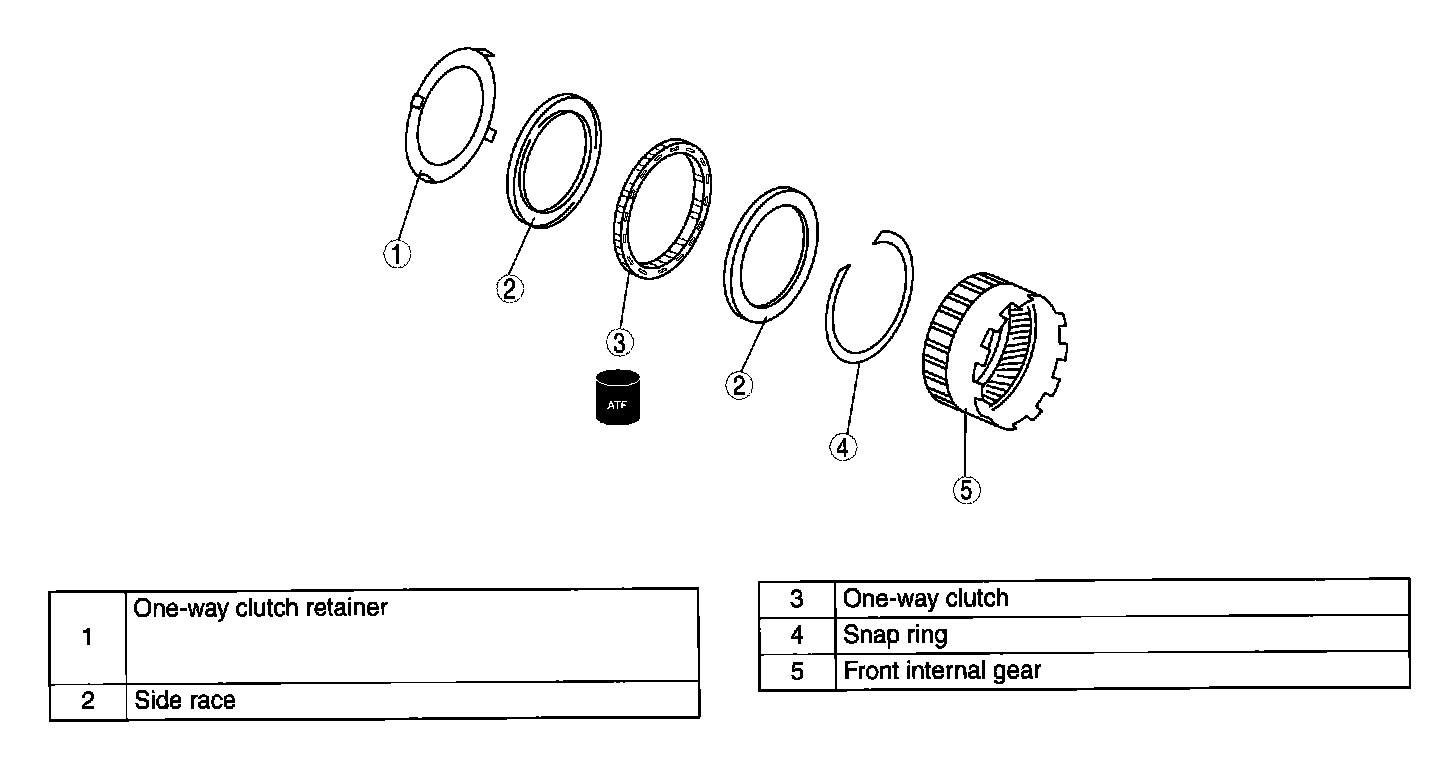

FRONT INTERNAL GEAR ONE-WAY CLUTCH COMPONENT DISASSEMBLY/ASSEMBLY
1. Perform the preinspection before disassembly.
2. Disassemble in the order indicated in the table.





3. Assemble in the reverse order of disassembly.

One-Way Clutch Retainer Disassembly Note

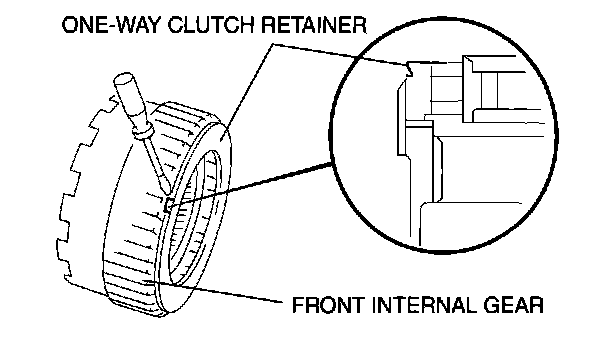

^ Remove the one-way clutch retainer using a flathead screwdriver, etc. as shown in the figure.

Assembly Procedure





1. Install the snap ring.

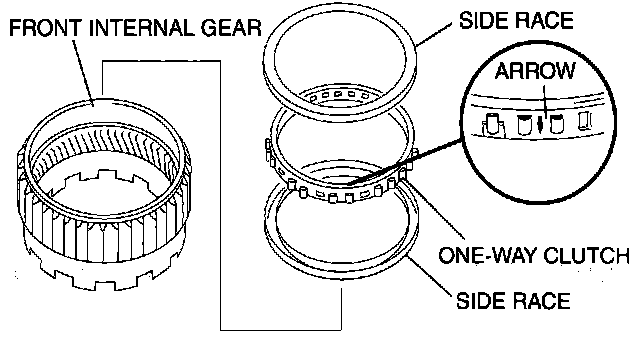

2. Install the one-way clutch to the front internal gear in the direction of the arrow (on the one-way clutch) as shown in the figure.
3. Install the side race.
4. Install the one-way clutch retainer.
