Cabin Ventilation Grille: Service and Repair
EXTRACTOR CHAMBER REMOVAL/INSTALLATION 1.
Remove the following parts:
1.
Trunk end trim
2.
Trunk side trim
3.
Rear combination light
4.
Rear bumper
2.

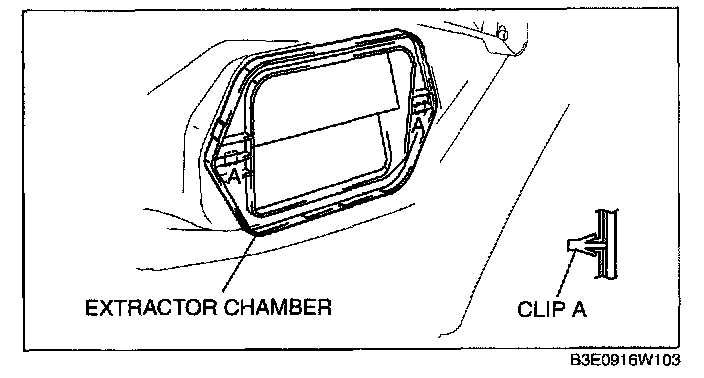

Detach clips A by squeezing them from inside the vehicle, and remove the extractor chamber from the body.
3.
Install in the reverse order of removal.
