Liftgate Lower Trim

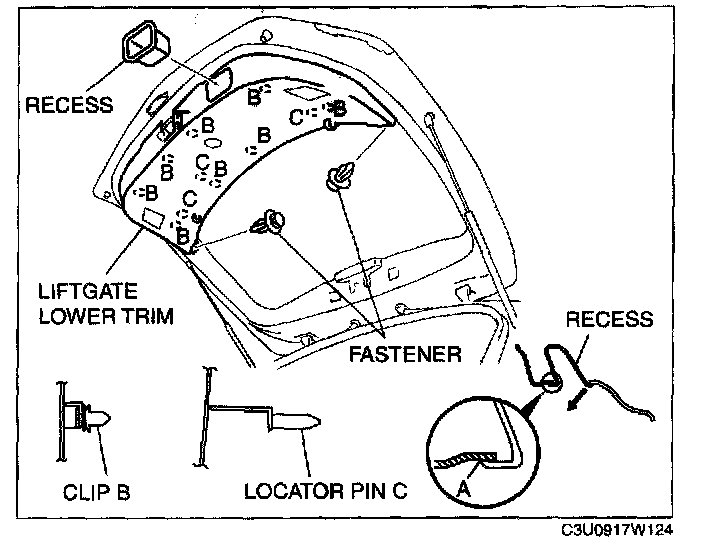

LIFTGATE LOWER TRIM REMOVAL/INSTALLATION 1.
Remove the liftgate upper trim.
2.
Remove the liftgate side trim.
3.
While supporting at point A, pull the recess in the direction of the arrow and remove it.
4.
Remove the fasteners.
5.
Pull the liftgate lower trim outward, then detach clips B and locator pins C from the liftgate.
6.
Remove the liftgate lower trim.
7.
Install in the reverse order of removal.
