Liftgate Side Trim
LIFTGATE SIDE TRIM REMOVAL/INSTALLATION 1.
Remove the liftgate upper trim.
2.

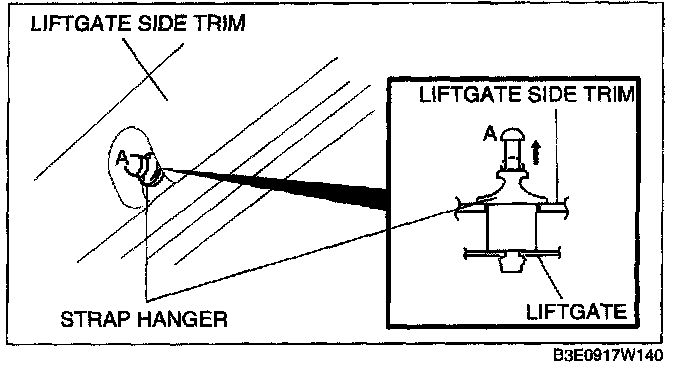

Put the me point A or me strap hanger as shown in the figure.
3.
Remove the strap hanger.
4.

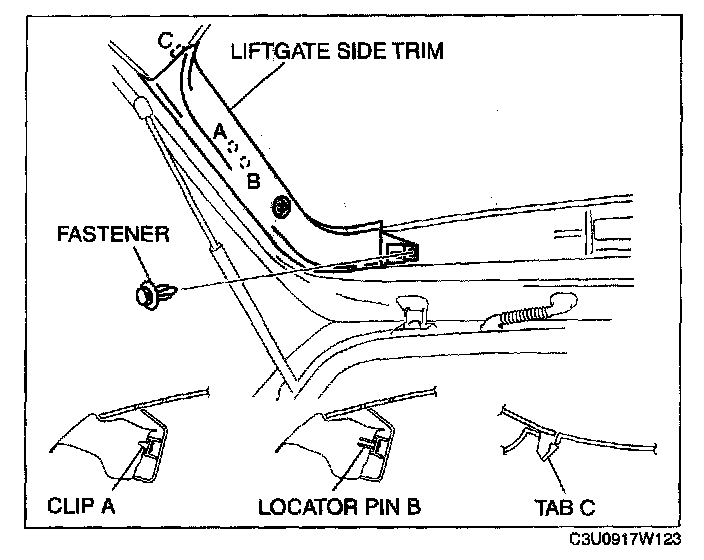

Pull the liftgate side trim outward and detach clip A, locator pin B.
5.
Detach the tab C and remove the liftgate side trim.
6.
Install in the reverse order of removal.
