Inner Garnish

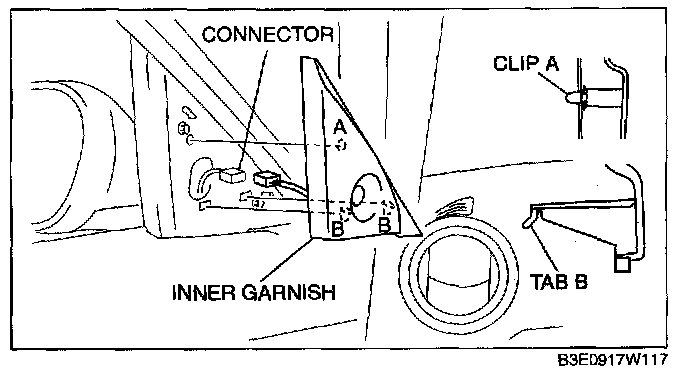

INNER GARNISH REMOVAL/INSTALLATION 1.
Disconnect the negative battery cable.
2.
Pull the inner garnish outward and detach clip A.
3.
Disconnect the connector.
4.
Detach the tabs B and remove the inner garnish.
5.
Install in the reverse order of removal.
