Lower Panel

LOWER PANEL REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Detach the hood release lever from the lower panel. (See HOOD LATCH REMOVAL/INSTALLATION.)
3. Remove the front scuff plate. (Driver's side)
4. Remove the front side trim. (Driver's side)




5. Remove the screw.

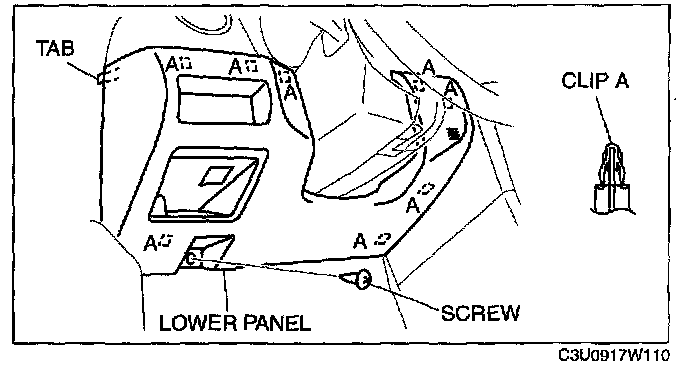

6. Pull the lower panel outward, and detach clips A and tab.
7. Disconnect the panel light control switch connector and the headlight leveling switch connector.
8. Remove the lower panel.
9. Install in the reverse order of removal.
