Brake Master Cylinder: Service and Repair

MASTER CYLINDER REMOVAL/INSTALLATION
1. Remove the battery and battery tray.

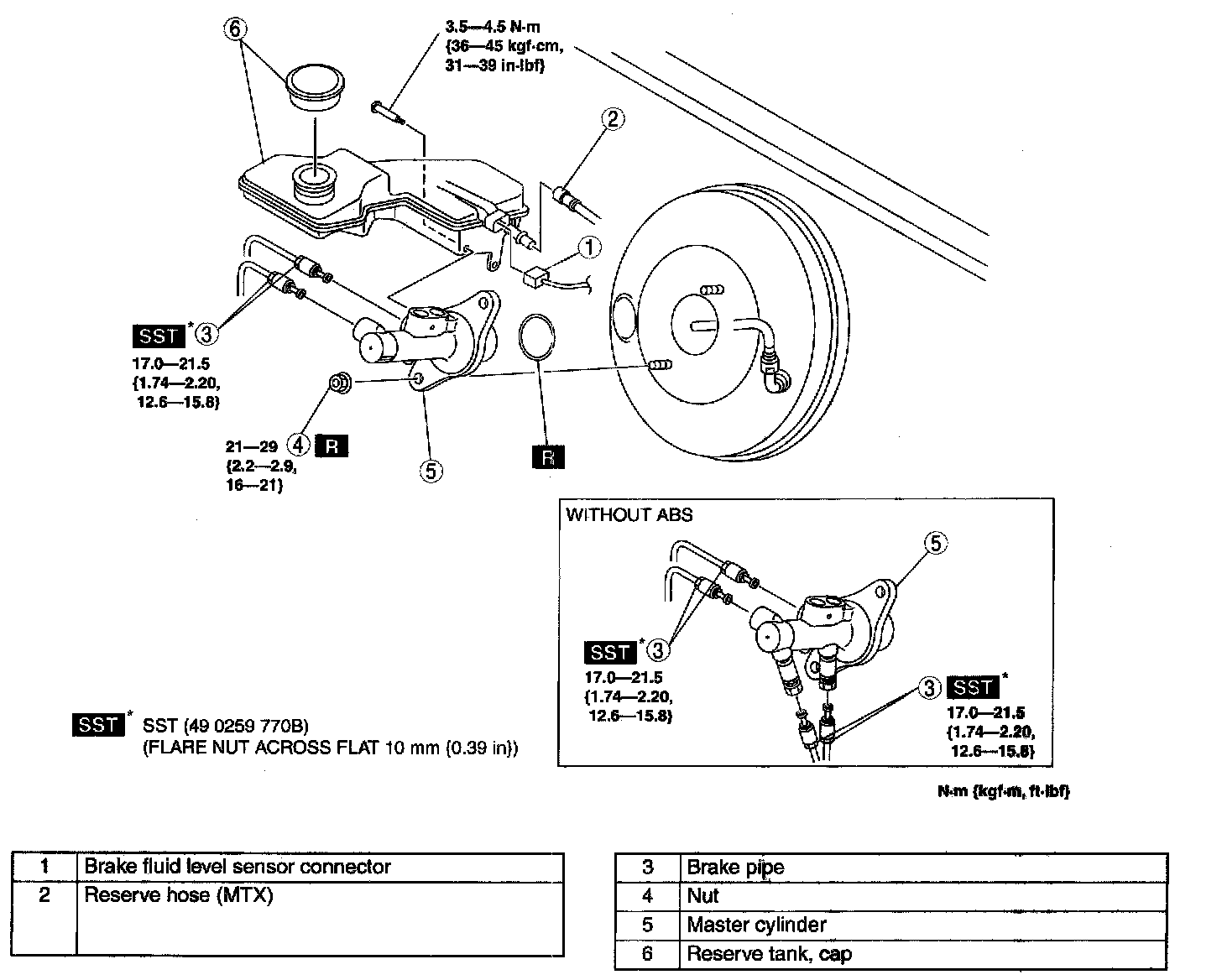

2. Remove in the order indicated in the table.





3. Install in the reverse order of removal.

Reserve Hose Removal Note

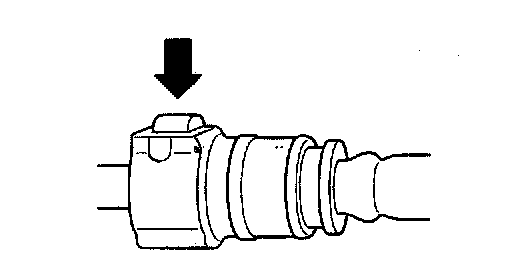

1. Remove the reserve hose from the reserve tank while pressing the point indicated by the arrow in the figure.

Reserve Hose Installation Note





1. Insert the reserve hose to the reserve tank until a click is heard.
2. Verify that the reserve hose is firmly installed by pulling it, and push it into the reserve tank again.
