Headlamp Switch: Testing and Inspection

LIGHT SWITCH INSPECTION

1. Verify that the continuity between the light switch terminals is as indicated in the table.

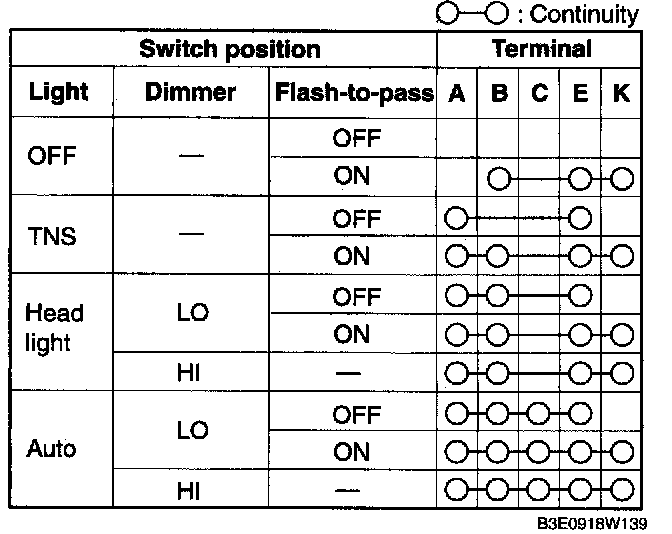

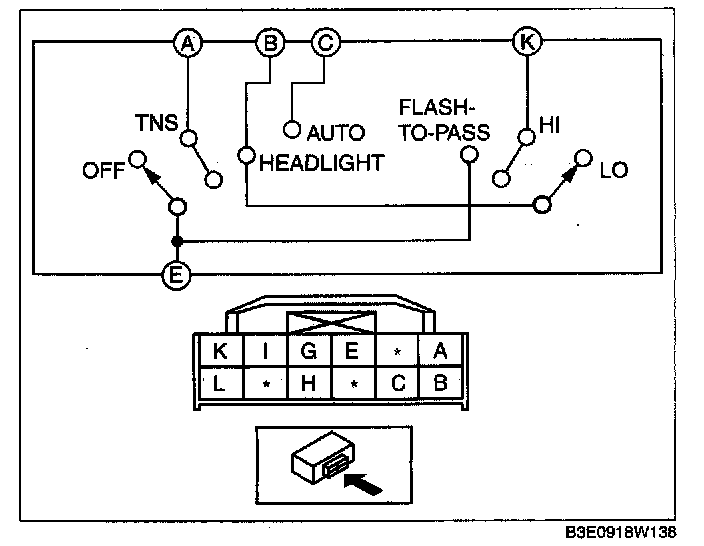

Headlight Switch
If not as indicated in the table, replace the light switch

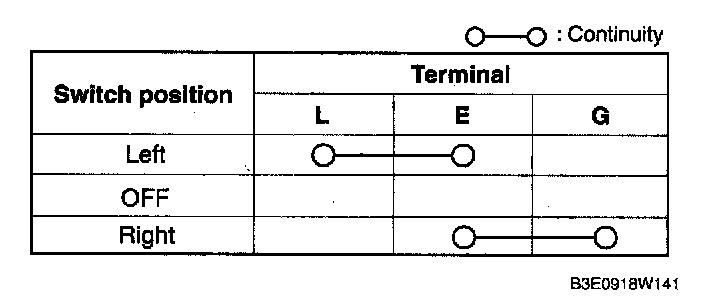

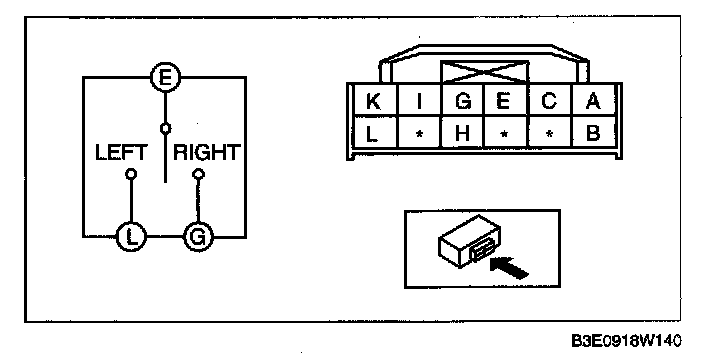

Turn Switch
