Engine/Fuel - MIL ON/DTC P2006 Stored

Bulletin No: 01-006/11

Last Issued: 02/09/2011

Subject:
MIL COMES ON WITH DTC P006/VARIABLE TUMBLE SHUTTER VALVE CANNOT COMPLETELY CLOSE

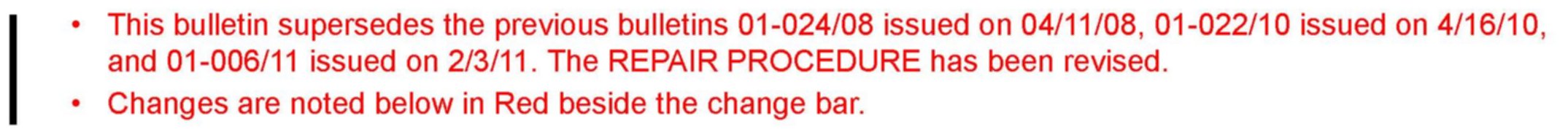

BULLETIN NOTE

APPLICABLE MODEL(S)/VINS
2004-2009 Mazda3 vehicles (2.3L)
2006-2009 Mazda5 vehicles

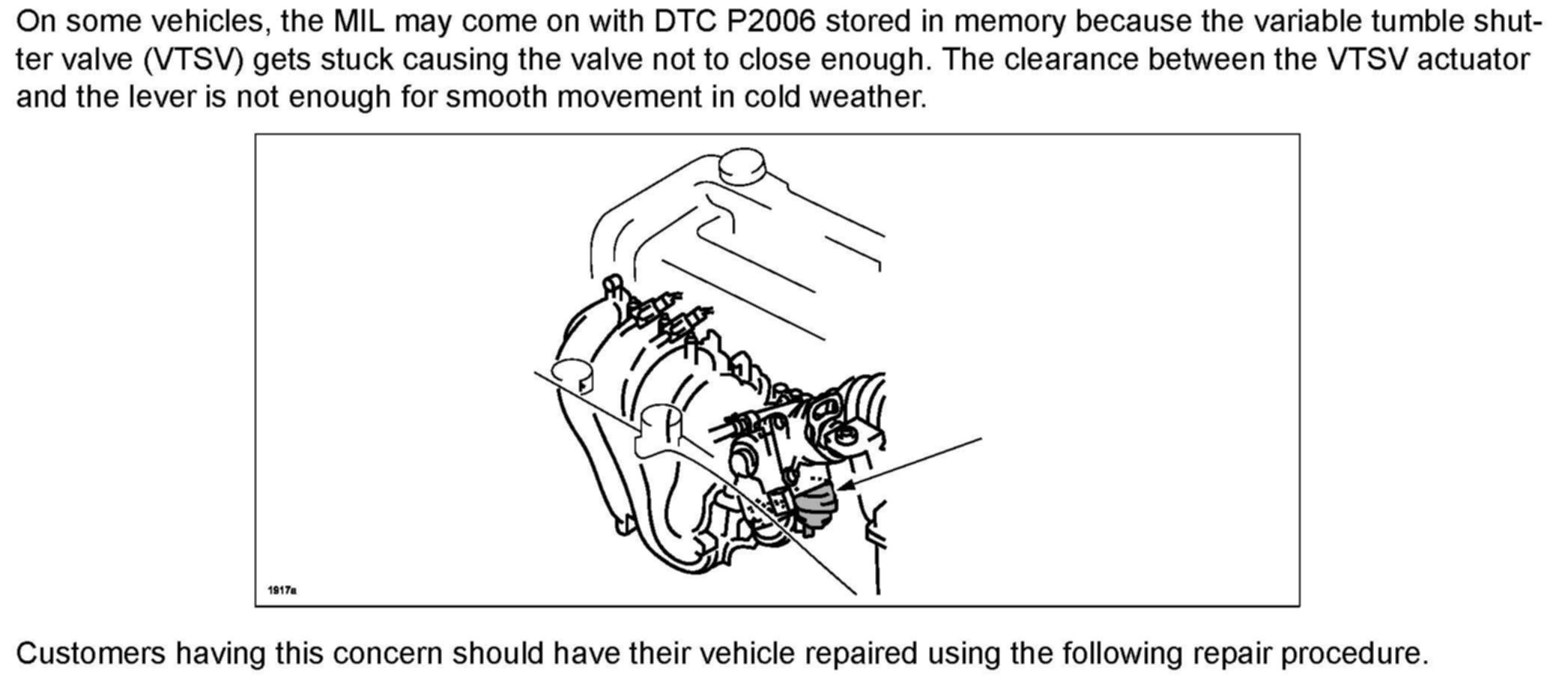

DESCRIPTION

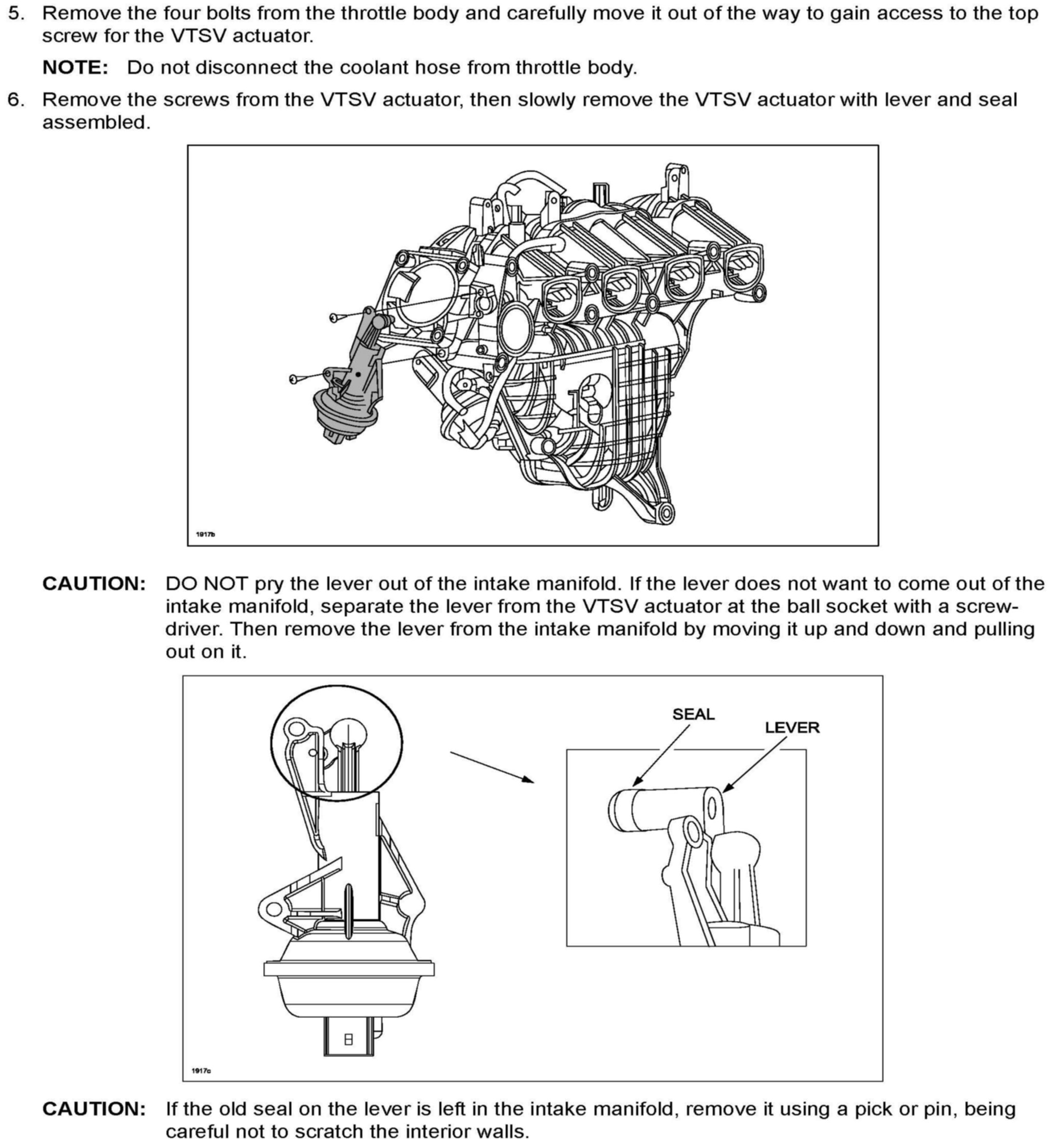

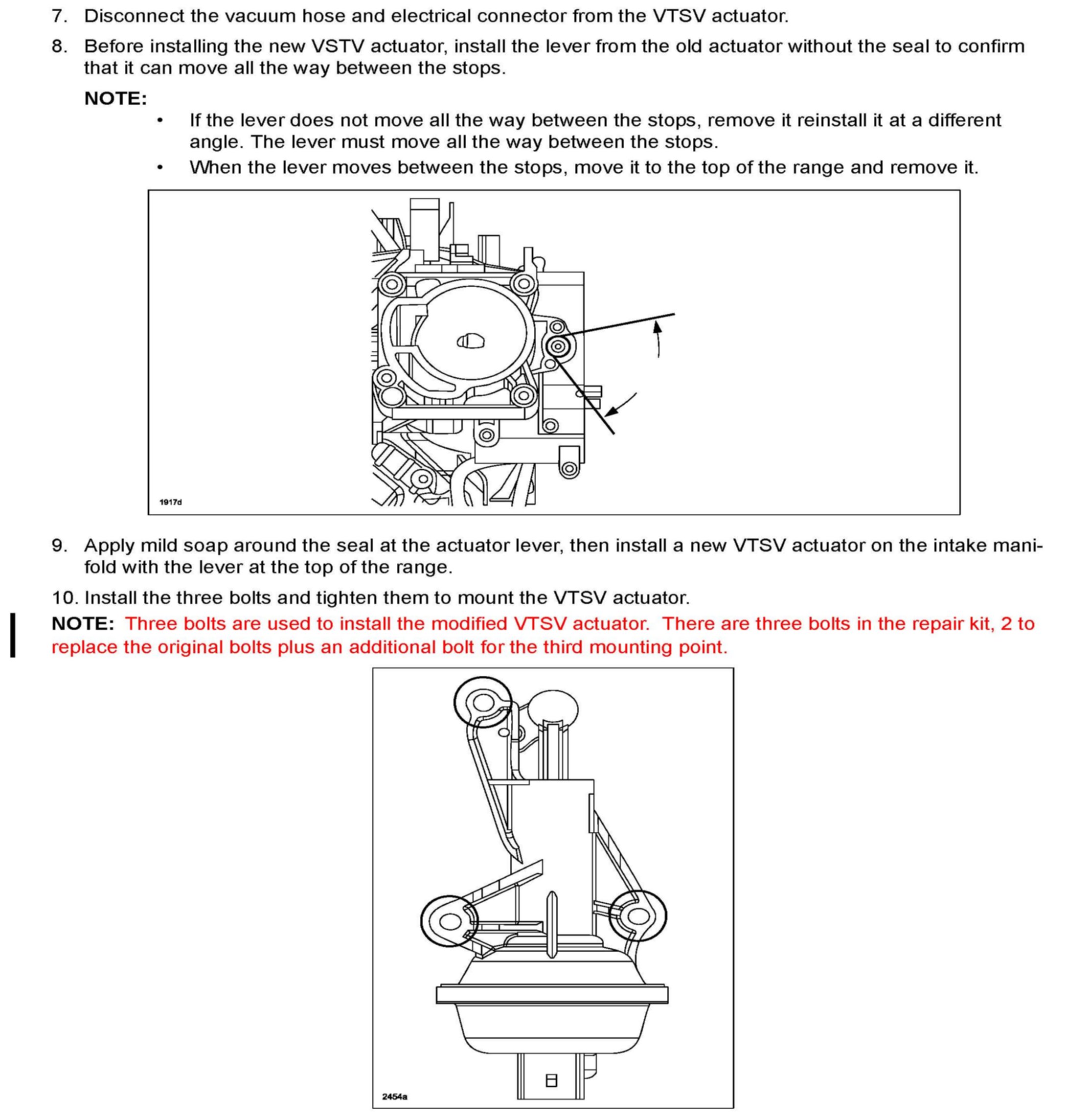

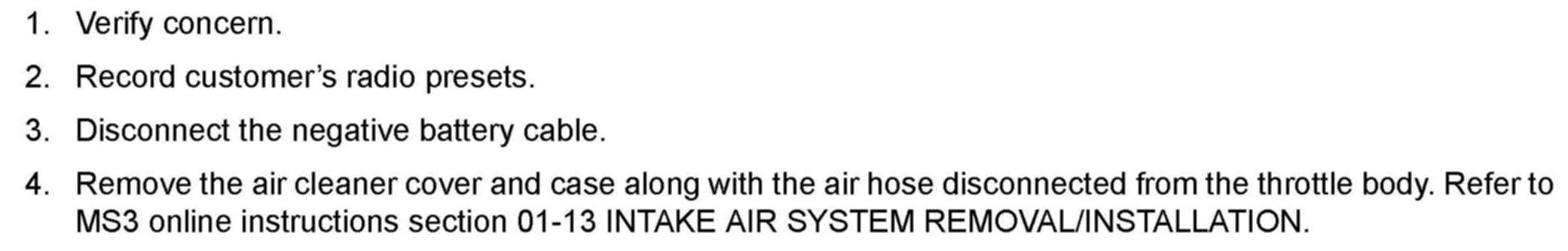

REPAIR PROCEDURE

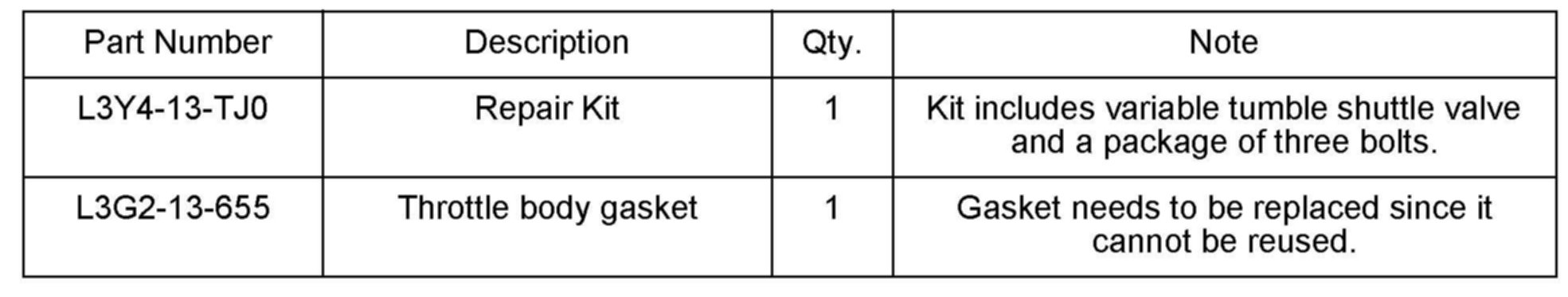

PART(S) INFORMATION

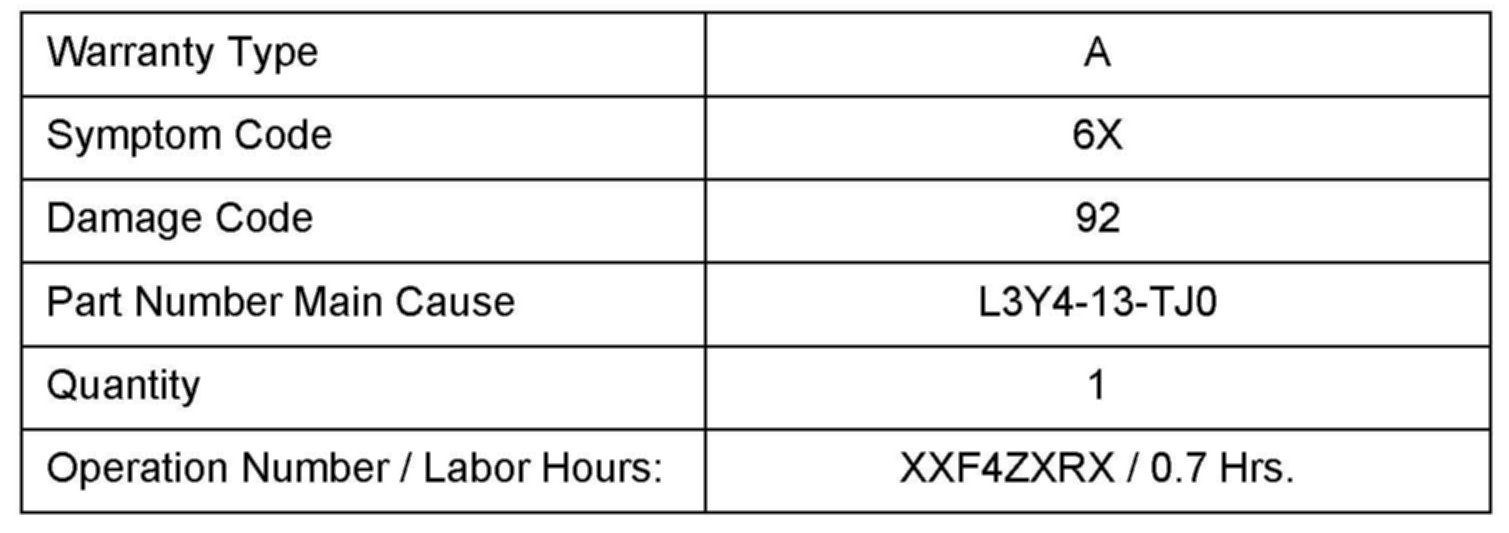

WARRANTY INFORMATION

NOTE:
^ This warranty information applies only to verified customer complaints on vehicles eligible for warranty repair.

^ This repair will be covered under Mazda's New Vehicle Limited Warranty term where applicable coverage will be California Emission Defect/Performance Warranty PZEV (Partial Zero Emissions) Warranty.

^ Additional diagnostic time cannot be claimed for this repair.
